Tempco Electrical Terminations

/Tempco/Data-Assets/15-Accessories-Images/WebT132.jpg

Hi-Temp Ring Terminal

Nickel Plated Steel Uninsulated Terminals

Hi-Temp Spade Terminal

Nickel Plated Steel Uninsulated Terminals

Hi-Temp Straight Terminal

Nickel Plated Steel Uninsulated Terminals

Stainless Steel Armor Cable

18″ armor cable over 24″ leads ; if longer cable is required, specify when ordering.

Galvanzied Armor Cable

18″ armor cable over 24″ leads; if longer cable is required, specify when ordering.

Stainless Steel Wire Braid

18″ wire braid over 24″ leads; if longer cable is required, specify when ordering.

Fiberglass Leads

450°C rating — 12″ long plain leads; if longer cable is required, specify when ordering.

SJO Cable

  • Includes ground wire
  • 16 ga. cable (Up to 15 Amps)
  • 14 ga. cable (Up to 22 Amps Max.)
  • 12 ga. cable (Up to 28 Amps Max.)
  • Max. terminal box temperature 194°F (90°C)
  • If longer cable is required, specify when ordering.

Factory prewired internal terminal box connections

Internal connections made between heaters in the factory. Customer supplied power is connected to a single terminal block.

/Tempco/Data-Assets/07-Infrared-Images/WebR112.jpg

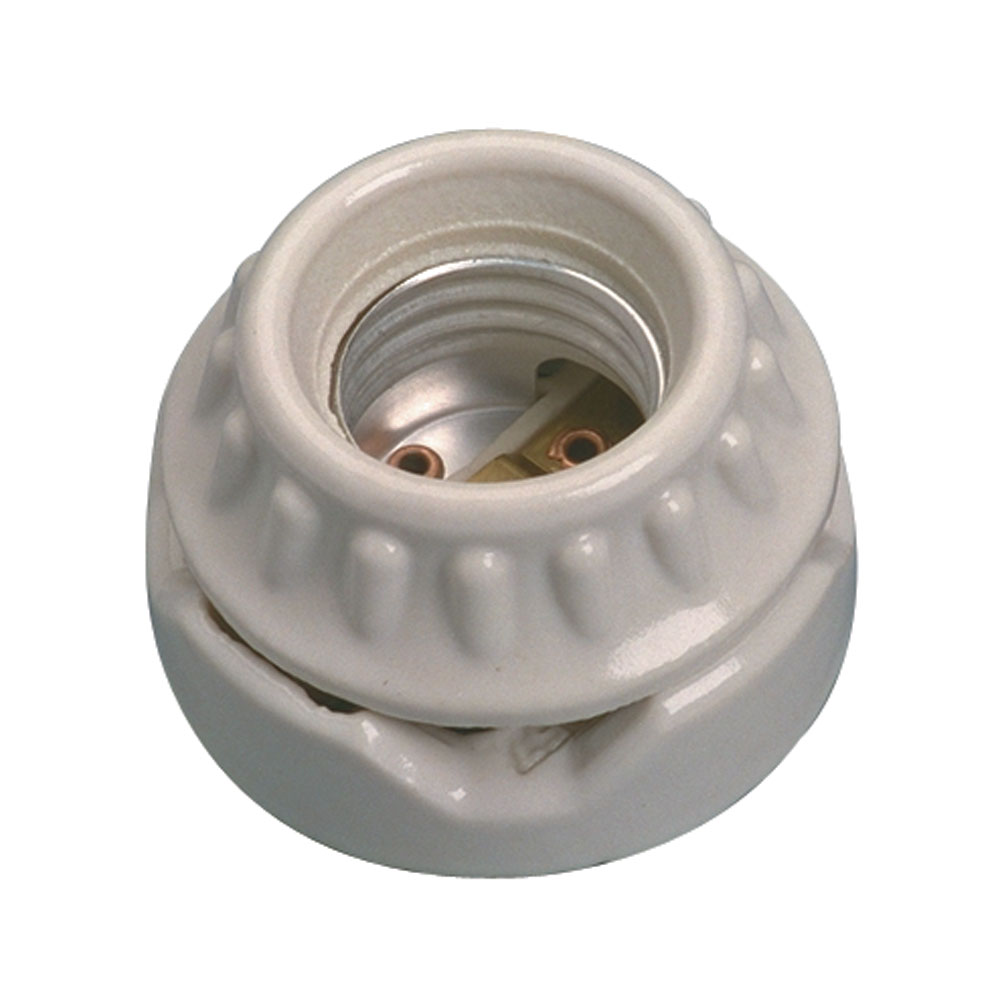

Edison Screw-In Socket

Heater is terminated with E26 Standard Base that fits standard screw-in base
Part Number: CRK00016
