MDI TANK ALARMS (HIGH WATER ALARM)

Indoor Tank Alarm (High Water Alarm)

Eagle Sensors & Controls is an authorized Mercury Displacement Industires / MDI distributor. Contact us with sales and application support.

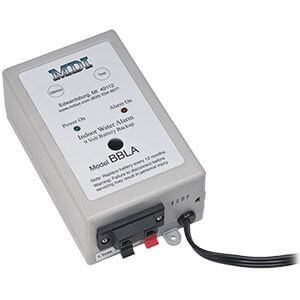

  • Indoor Tank Alarm (High Water Alarm)Indoor Tank Alarm (High Water Alarm)
  • Outdoor Tank Alarm (High Water Alarm)Outdoor Tank Alarm (High Water Alarm)

Installation Instructions

  1. Install 9V battery (SP-3000/SP-3100 alarm only – not included). Replace battery once a year.
  2. Select an indoor mounting location.
  3. Install alarm on the wall at the desired height.
  4. Use cable tie supplied in the box to secure the float switch at the desired warning level in the tank (see diagram).
  5. Now manually test the alarm by tilting the float switch up until you hear the alarm notification and you see the alarm light turn on.
  6. Periodically test unit by pushing the test button on the cover to make sure the unit is working properly.

Test alarm installation by pressing TEST button on the front of the alarm panel, The light and siren should activate. This test reflects there is electricity to the alarm. The float circuit may be checked by manually raising the float upward past 90 Deg. to the discharge pipe. With the alarm switch in the alarm position, the alarm should give a visual and audible alarm.
