Amerimation Screw Clamp Disconnect Type
Eagle Sensors is an authorized Amerimation distributor. Please contact us for application & sales support.

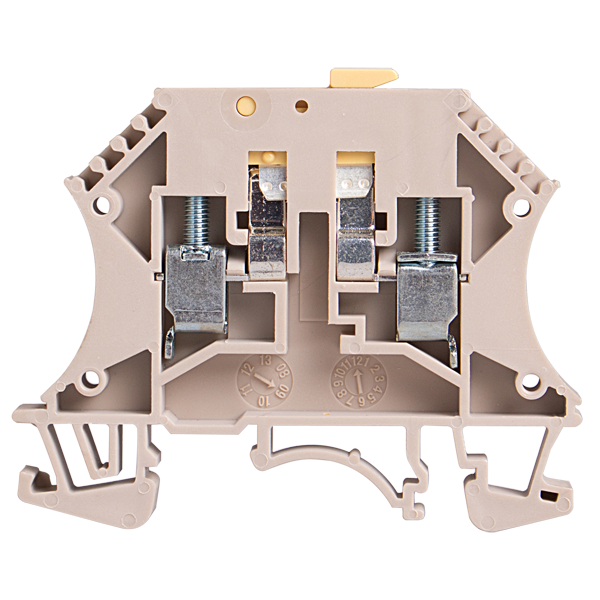

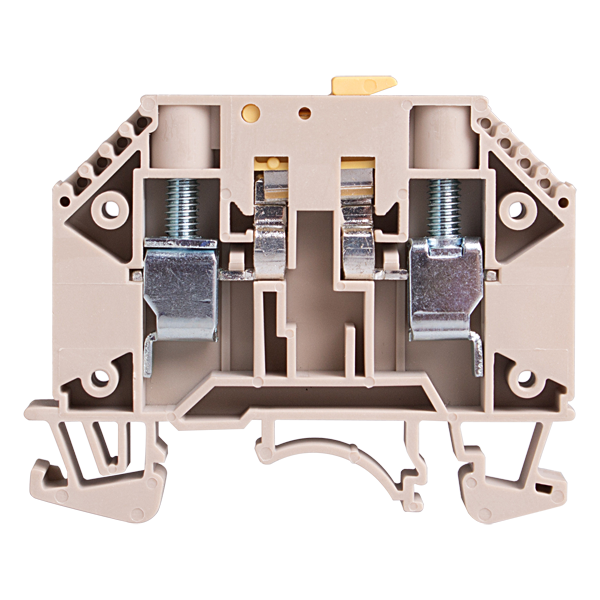

| Part number | CTR 2.5 | CTR 4 | CTR 6 | CTR 10 | ||||||||
| Photo |  |
|
 |
|
||||||||
| Technical data | Rated Voltage | Rated Current | Wire Size | Rated Voltage | Rated Current | Wire Size | Rated Voltage | Rated Current | Wire Size | Rated Voltage | Rated Current | Wire Size |
| UL/CSA | 600V | 12A | AWG 10-22 | 600V | 12A | AWG 10-22 | 600V | 24A | AWG 12-22 | 600V | 24A | AWG 12-22 |
| IEC | 500V | 15A | 0.5-2.5 mm² | 500V | 15A | 0.5-4 mm² | 630V | 24A | 0.5-6 mm² | 630V | 24A | 1.5-10 mm² |
| Certificate/Compliance |  |
– | – | – | ||||||||
| Torquie (lb-in) | 4.5 | 6 | 14 | 19 | ||||||||
| Clamping Screw | M3 | M3 | M4 | M4 | ||||||||
| Stripping length | 10-12mm | 10-12mm | 12-14mm | 12-14mm | ||||||||
| Available colors | Beige | Beige | Beige | Beige | ||||||||
| Dimensions (mm: HxWxD) | 47.5 x 60 x 5 | 47.5 x 60 x 6 | 47.5 x 60 x 8 | 47.5 x 60 x 10 | ||||||||
