Tempco Termination Options

/Tempco/Data-Assets/08-Strip-Images/WebG515.jpg

Igloo Ceramic Covers with Mounting Tabs

Igloo Ceramic terminal covers consist of two individual ceramic parts.  With a tight-fitting cap and a solid base, an Igloo cover will fully insulate any standard 10-32 terminal lug used for electrical wiring hookups. Igloo covers can be assembled on all Channel Strip heaters with Type T1 and Type T4 screw terminals.
Three different types of Igloo bases are available for your wiring convenience. Double Port In-Line, Double Port 90° and Single Port. When ordering, specify the type of Igloo.

/Tempco/Data-Assets/08-Strip-Images/WebG574NewB.jpg

Type C: Terminal Box (General Purpose) with Mounting Tabs

Terminal box has a 1/2″ trade size knockout  (actual diameter 7/8″). Box provides excellent protection to exposed terminals. If armor-protected lead wires are required, specify armor and lead length.

/Tempco/Data-Assets/08-Strip-Images/WebG576NewB.jpg

Type P: Quick Disconnect Plugs with Mounting Tabs

High-Temperature Quick Disconnect Plug. If armor protected lead wires are required, specify armor and lead length.

Maximum Amps: 10 at 240VA
Maximum Volts: 250

Additional Options

/Tempco/Data-Assets/08-Strip-Images/WebT109.jpg

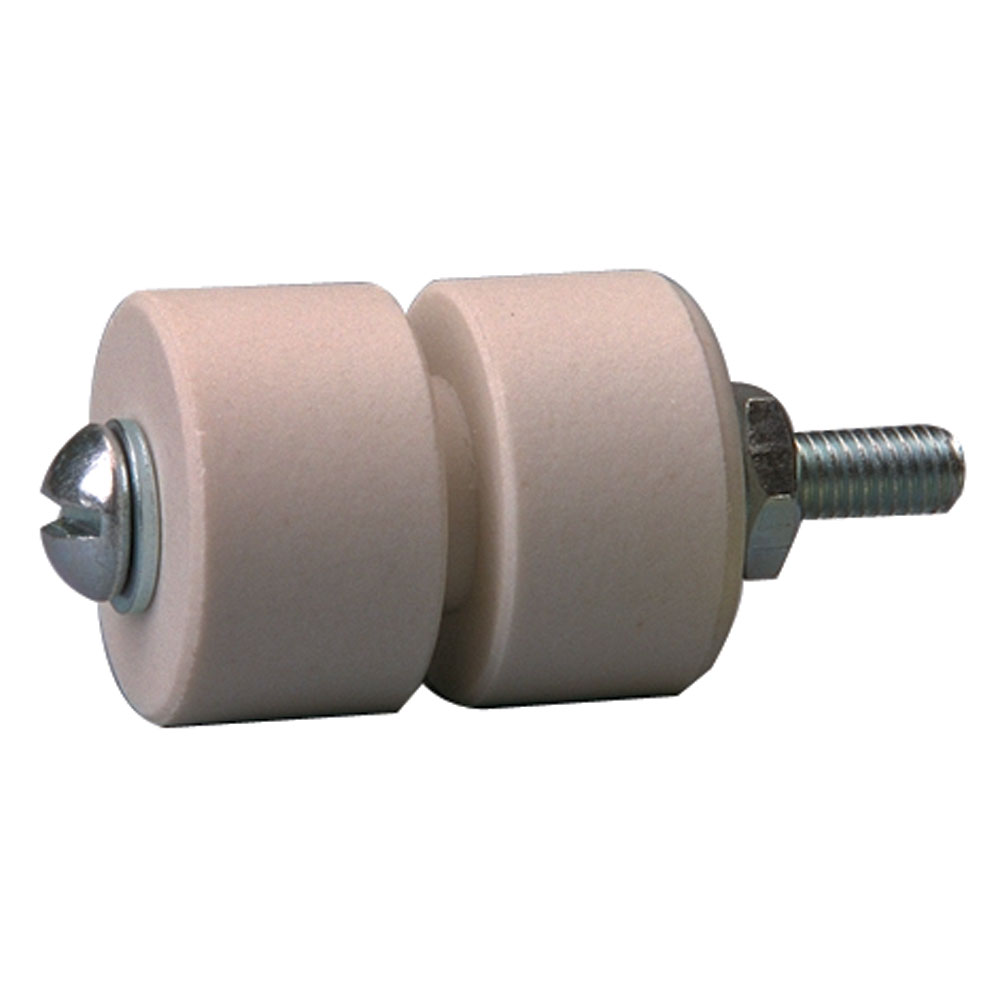

Secondary Insulating Bushings

Used to mount finned strip heaters in air heating applications. Also can be used when it is necessary to electrically isolate the heater from ground.
When Insulating Bushings are required, a 1/2″ × 5/8″ slot is substituted for the standard slot size (5/16″ × 1/2″).

Insulating Bushing Assembly
Part Number: CERR-1001

Stainless Steel Sheath

For corrosive atmospheres and/or sheath temperatures up to 1200°F (650°C), stainless steel sheath is available.
