Tempco Termination Options

/Tempco/Data-Assets/08-Strip-Images/WebG515.jpg

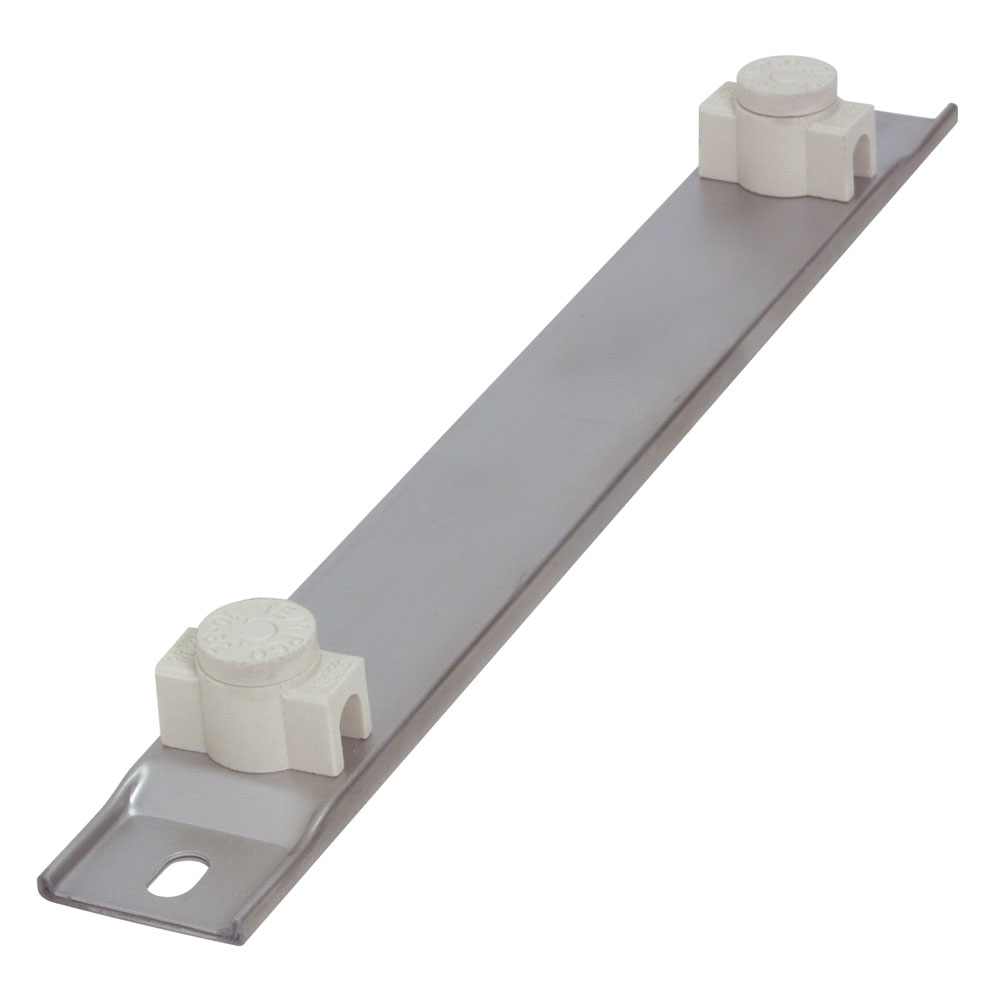

Igloo Ceramic Covers with Mounting Tabs

Igloo Ceramic terminal covers consist of two individual ceramic parts.  With a tight-fitting cap and a solid base, an Igloo cover will fully insulate any standard 10-32 terminal lug used for electrical wiring hookups. Igloo covers can be assembled on all Channel Strip heaters with Type T1 and Type T4 screw terminals.
Three different types of Igloo bases are available for your wiring convenience. Double Port In-Line, Double Port 90° and Single Port. When ordering, specify the type of Igloo.

/Tempco/Data-Assets/08-Strip-Images/WebG574NewB.jpg

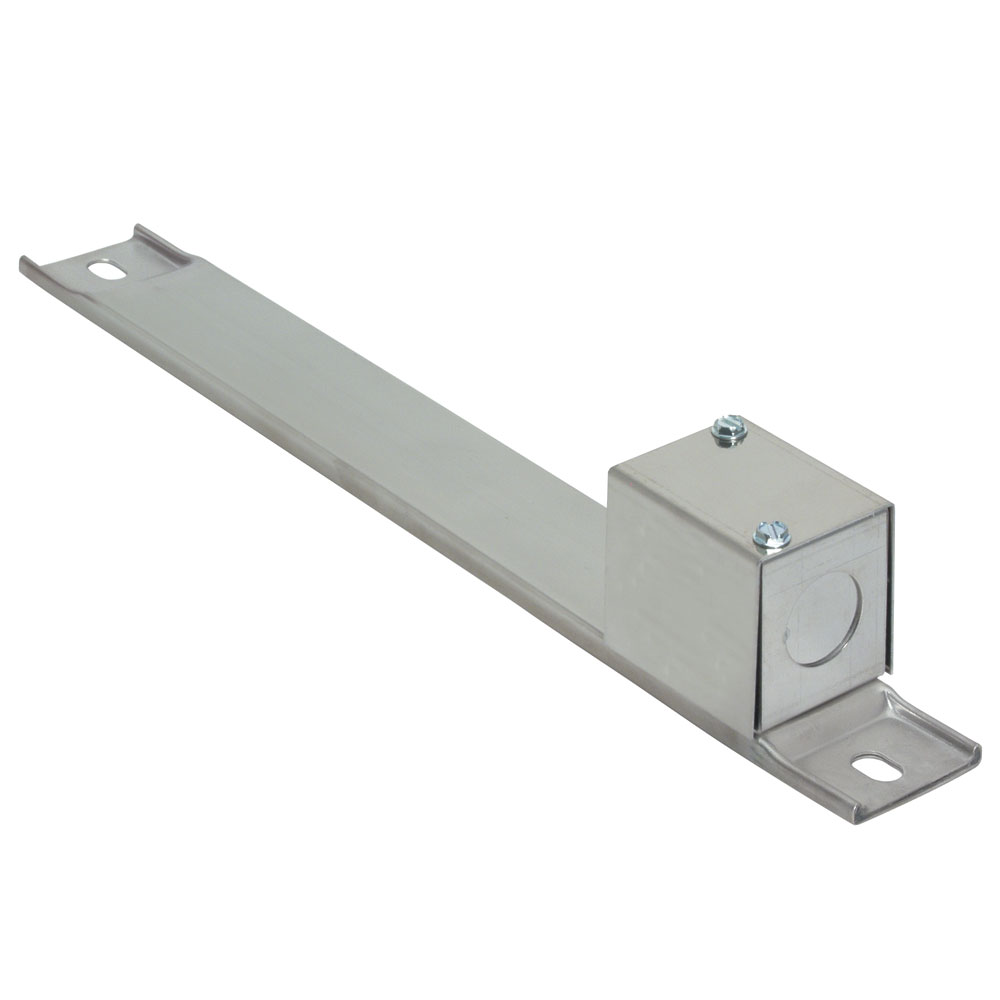

Type C: Terminal Box (General Purpose) with Mounting Tabs

Terminal box has a 1/2″ trade size knockout  (actual diameter 7/8″). Box provides excellent protection to exposed terminals. If armor-protected lead wires are required, specify armor and lead length.

/Tempco/Data-Assets/08-Strip-Images/WebG576NewB.jpg

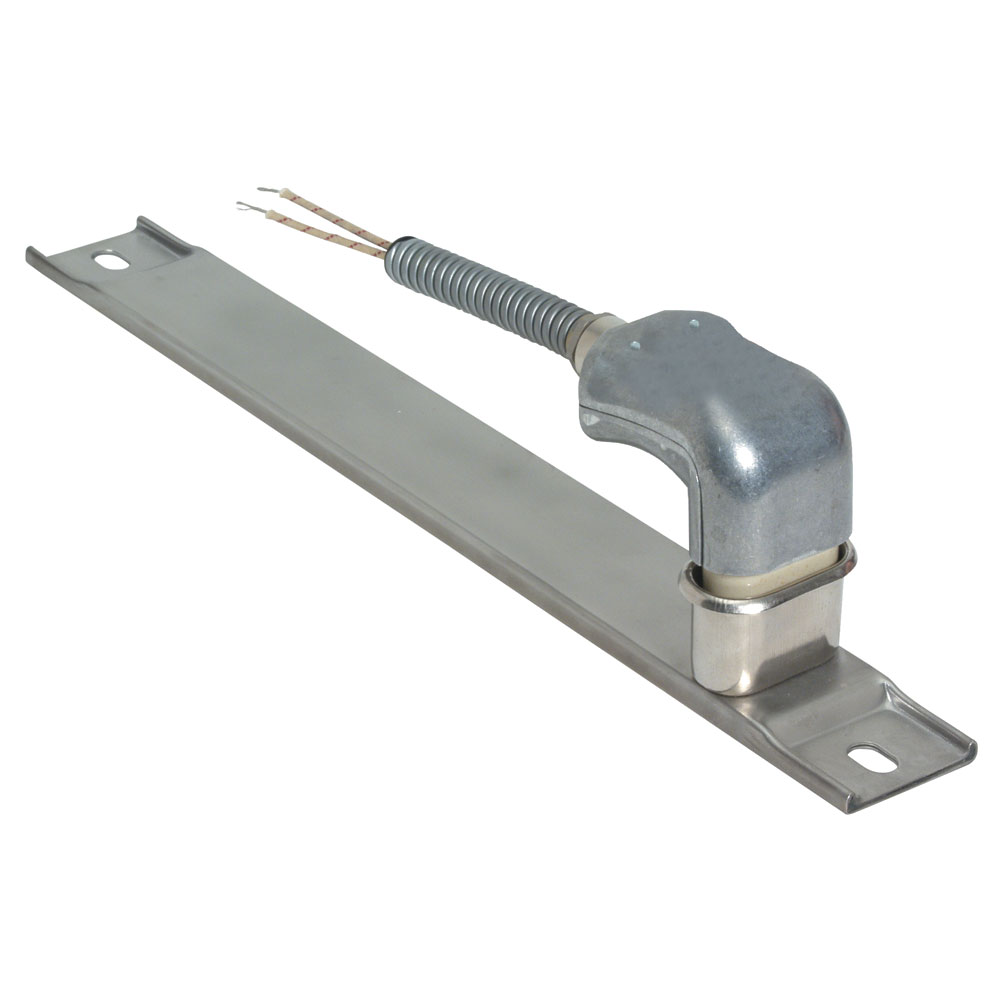

Type P: Quick Disconnect Plugs with Mounting Tabs

High-Temperature Quick Disconnect Plug. If armor protected lead wires are required, specify armor and lead length.

Maximum Amps: 10 at 240VA
Maximum Volts: 250

/Tempco/Data-Assets/08-Strip-Images/WebG579.jpg

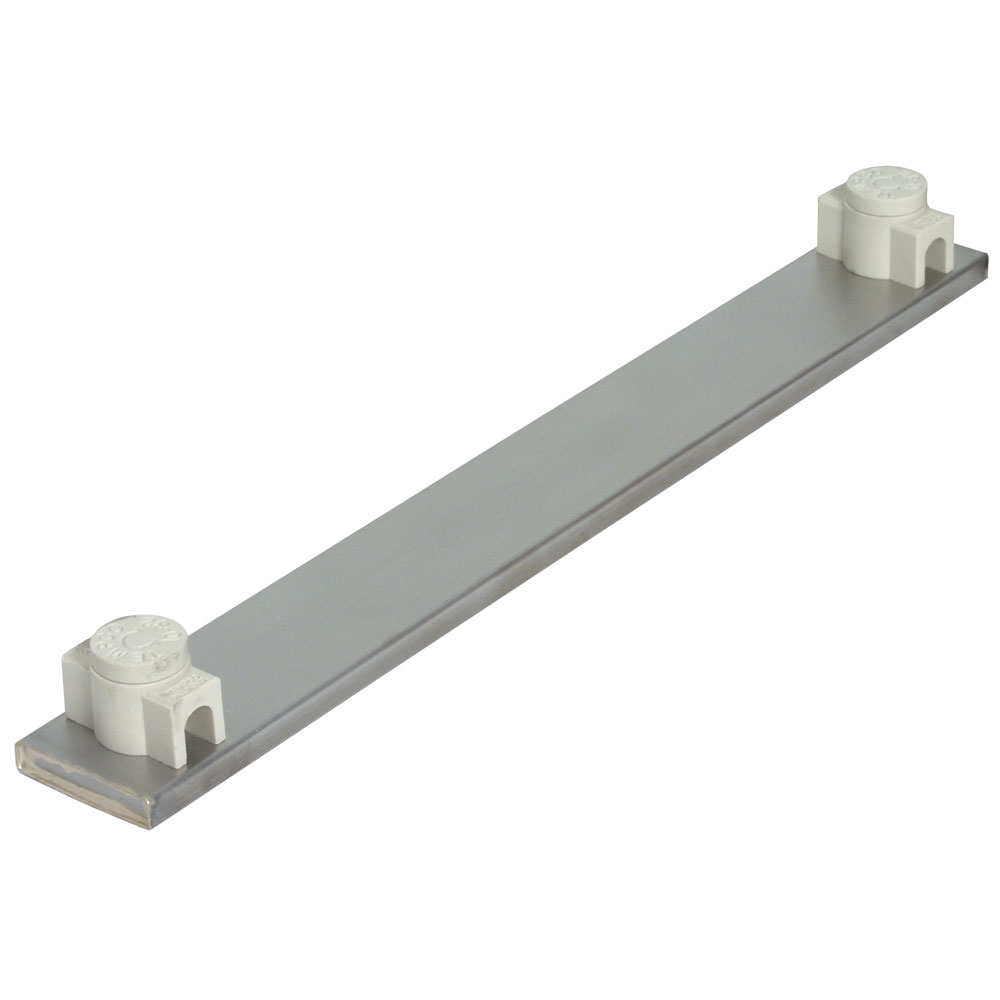

Igloo Ceramic Covers

Igloo Ceramic terminal covers consist of two individual ceramic parts.  With a tight-fitting cap and a solid base, an Igloo cover will fully insulate any standard 10-32 terminal lug used for electrical wiring hookups. Igloo covers can be assembled on all Channel Strip heaters with Type T1 and Type T4 screw terminals.
Three different types of Igloo bases are available for your wiring convenience. Double Port In-Line, Double Port 90° and Single Port. When ordering, specify the type of Igloo.

/Tempco/Data-Assets/08-Strip-Images/WebG574New.jpg

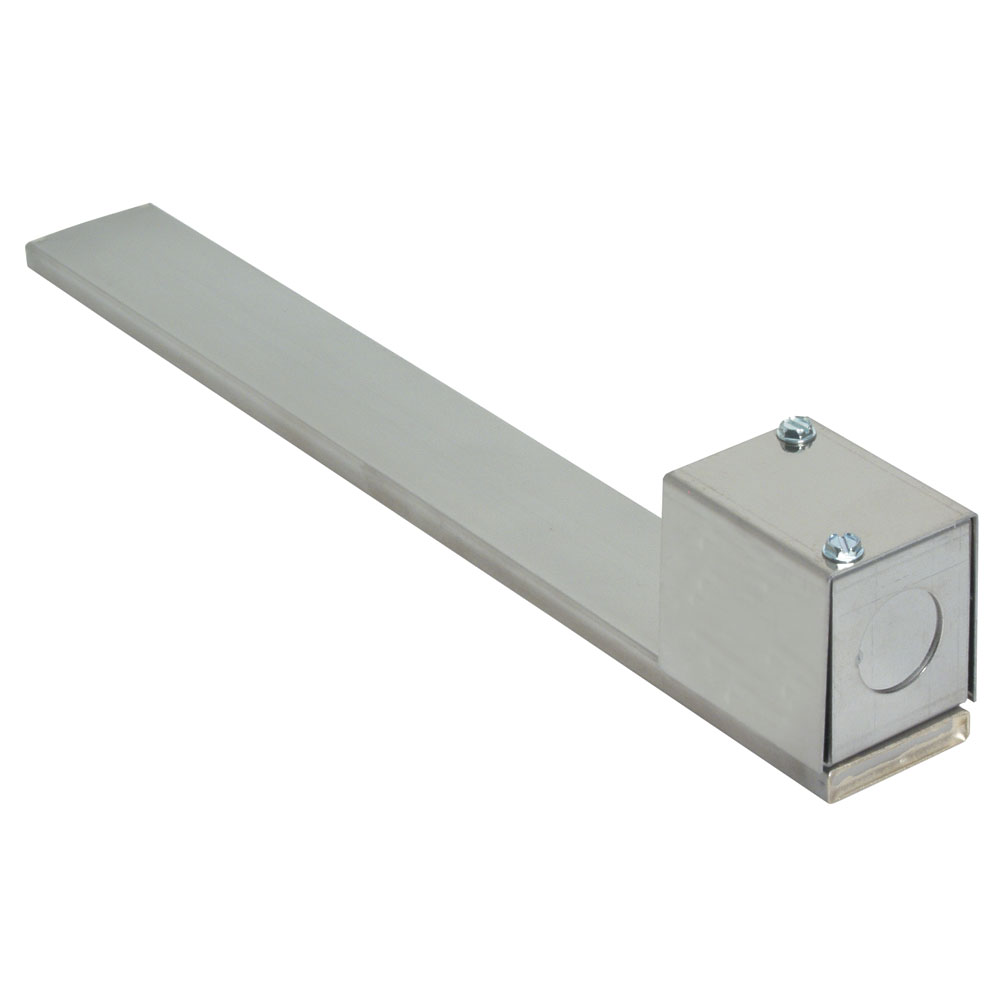

Type C: Terminal Box (General Purpose)

Terminal box has a 1/2″ trade size knockout  (actual diameter 7/8″). Box provides excellent protection to exposed terminals. If armor-protected lead wires are required, specify armor and lead length.

/Tempco/Data-Assets/08-Strip-Images/WebG581New.jpg

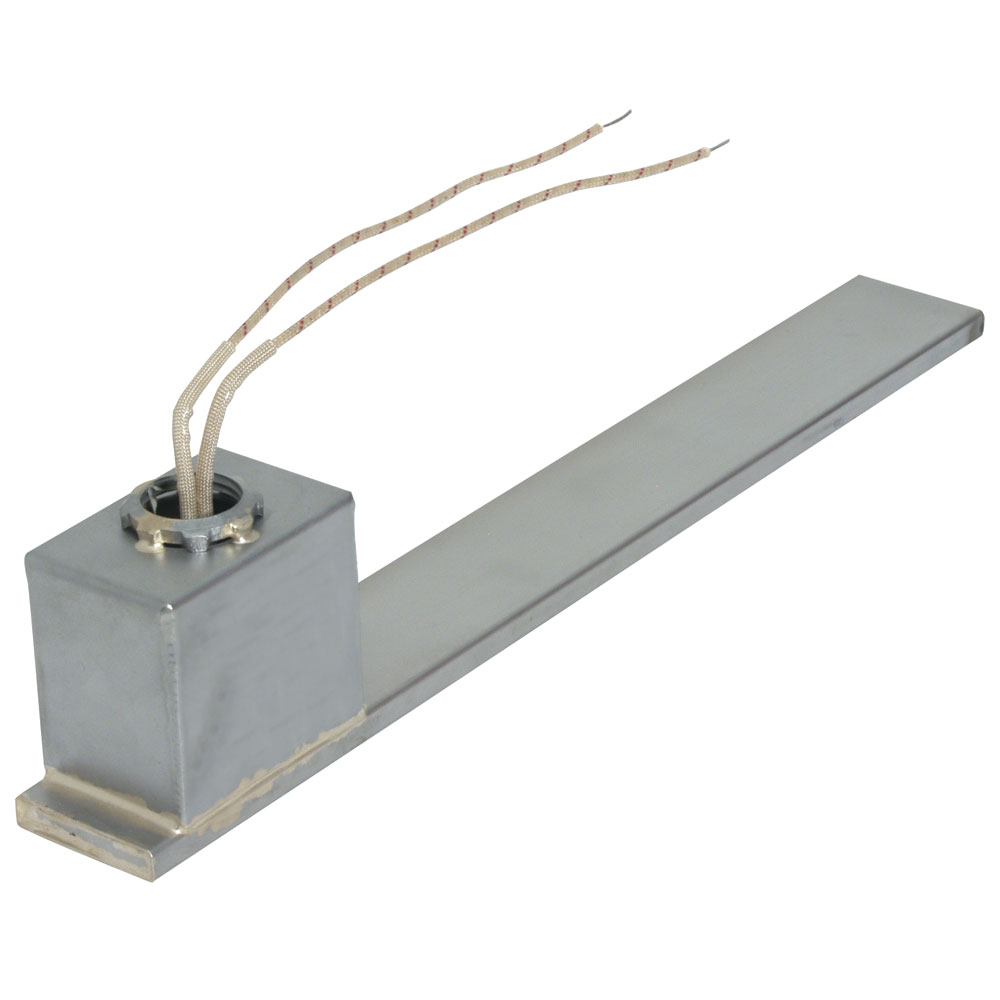

Type MP: Welded Terminal Box

Specially designed box is welded to the Channel Strip Heater and potted with epoxy. The ends of the heater are also welded. Leads exit through a 1/2″ NPT nut that can be located at the top or in the front of the box. Armor cable can be supplied with the male fitting, providing a completely sealed Channel Strip. Available on 11⁄2″ wide heaters only.
10″ long leads standard; if longer leads are required, specify.

Maximum Amps: 25
Maximum Volts: 480

/Tempco/Data-Assets/08-Strip-Images/WebG576New.jpg

Type P: Quick Disconnect Plugs

High-Temperature Quick Disconnect Plug. If armor protected lead wires are required, specify armor and lead length.

Maximum Amps: 10 at 240VA
Maximum Volts: 250
