Tempco Termination Accessories

/Tempco/Data-Assets/15-Accessories-Images/WebT110.jpg

Ceramic Beads

Used to insulate bare lead wire at extremely high temperatures.

Plug Types

/Tempco/Data-Assets/15-Accessories-Images/WebT123.jpg

Heavy Duty Quick Disconnect Plugs

Tempco offers 9 Heavy Duty Quick Disconnect Plugs and Matching Connecters. (Connectors are cable mount only.)

Additional Options

/Tempco/Data-Assets/07-Infrared-Images/WebR560a.jpg

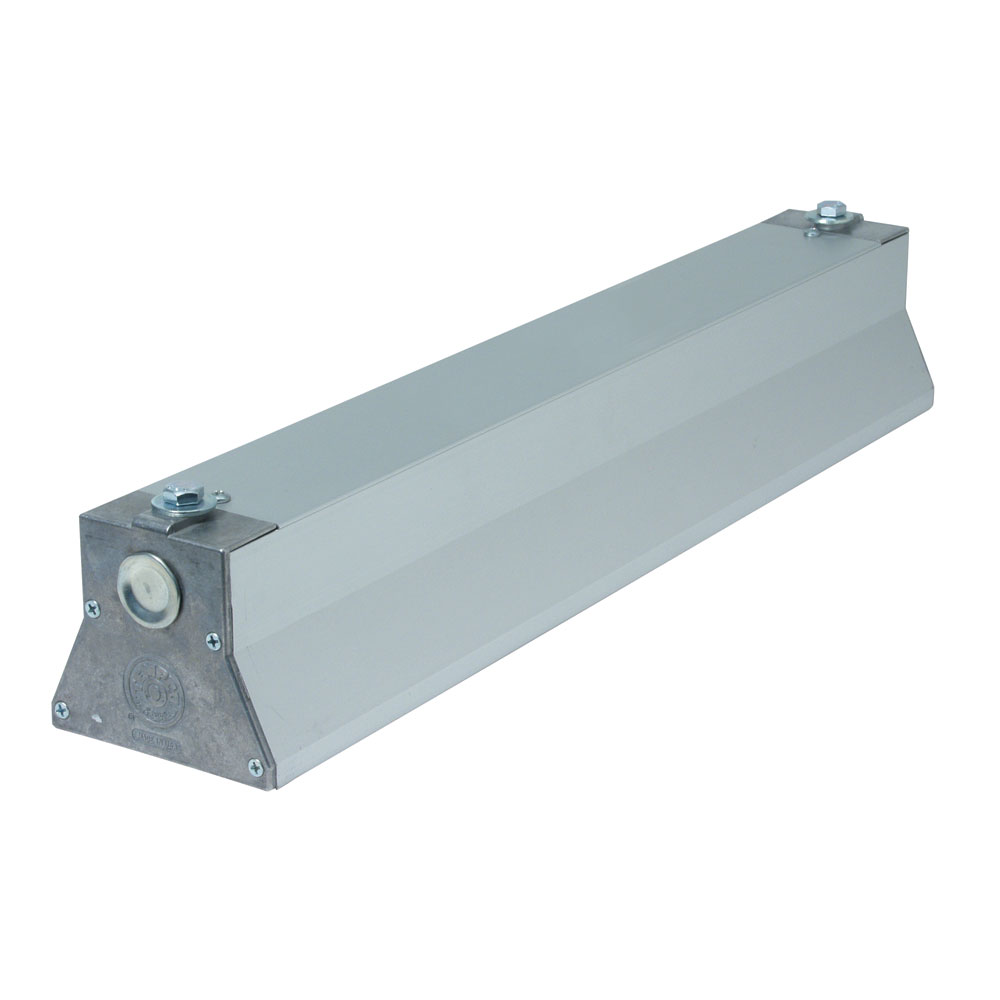

CRK Housings

Standard CRK Linear Housings CRK housings include the following components: housing body, end plates, 5/16-18 mounting bolts, cover and ground lug.

Built-In Type K Thermocouple Standard

Specify Type K thermocouple as needed.

Built-In Type J Thermocouple Optional

Specify Type J thermocouple as needed.

/Tempco/Data-Assets/07-Infrared-Images/WebR527a.jpg

Low Noise Thermocouple Optional

For those applications where emf generated noise is a problem for the instrument, Tempco offers a low noise thermocouple solution. The low noise thermocouple option is designed to minimize the induced AC noise by using stainless steel overbraid on the high temperature fiberglass color- coded 24 GA solid leads as a ground shield and a ceramic insulator at the thermocouple junction.

/Tempco/Data-Assets/07-Infrared-Images/WebR549.jpg

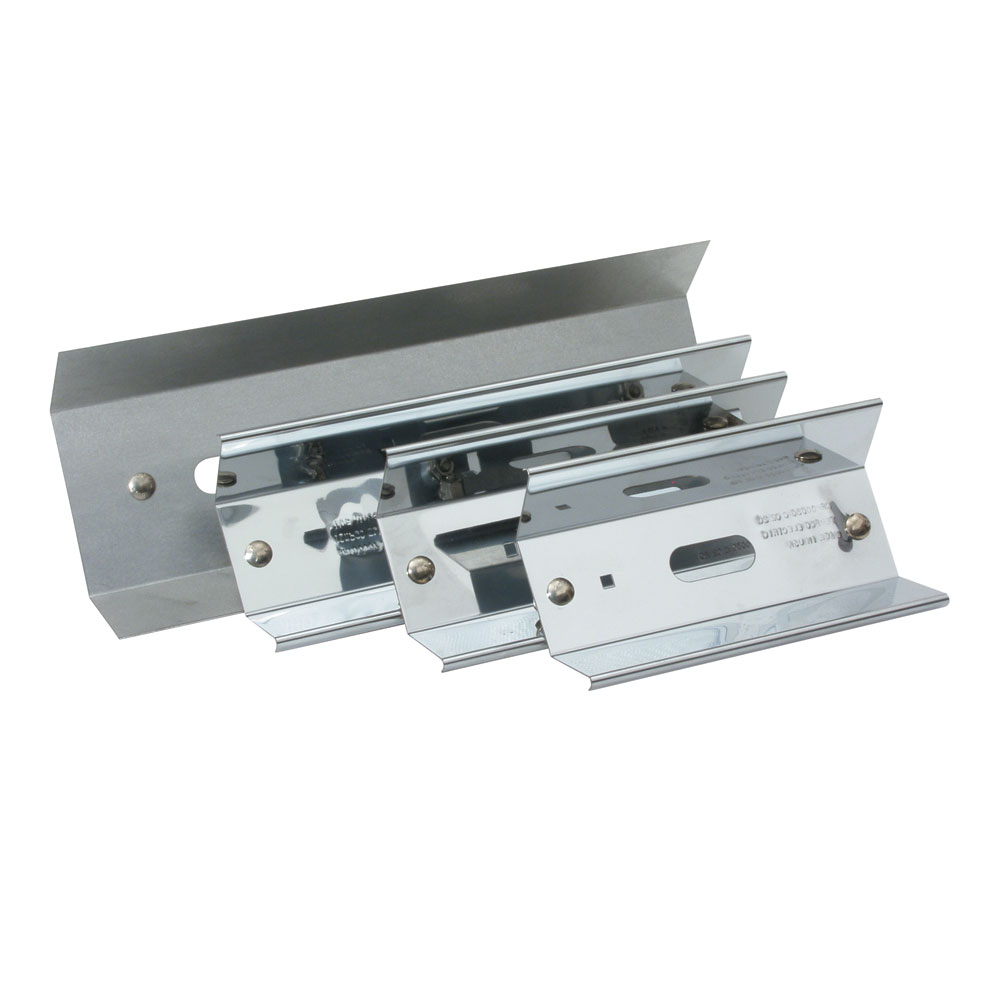

Reflectors for Ceramic E-Mitters

  • Designed to withstand bending and heat distortion.
  • Made from highly polished chrome steel or optional aluminized steel for extreme temperatures and harsh environments.
  • Will withstand high operating temperatures.
  • Available in three standard sizes; includes standoffs and hardware.
  • Easy installation into CRA linear structural housing assemblies (except CRK00032).

Stranded Lead Wire

Stock High Temperature Stranded Lead Wire The following insulated lead wires are available for internal bussing and the line input wiring of CRA Linear Housing Assemblies and AR_ Radiant Panels.

Thermocouple Wire

The following insulated thermocouple wires are available for internal bussing and wiring of CRA Linear Housing Assemblies and AR_ Radiant Panels to external control systems. These duplex thermocouple wires have color coded fiberglass insulation over each lead within an overall fiberglass insulation jacket.

/Tempco/Data-Assets/07-Infrared-Images/WebR572.jpg

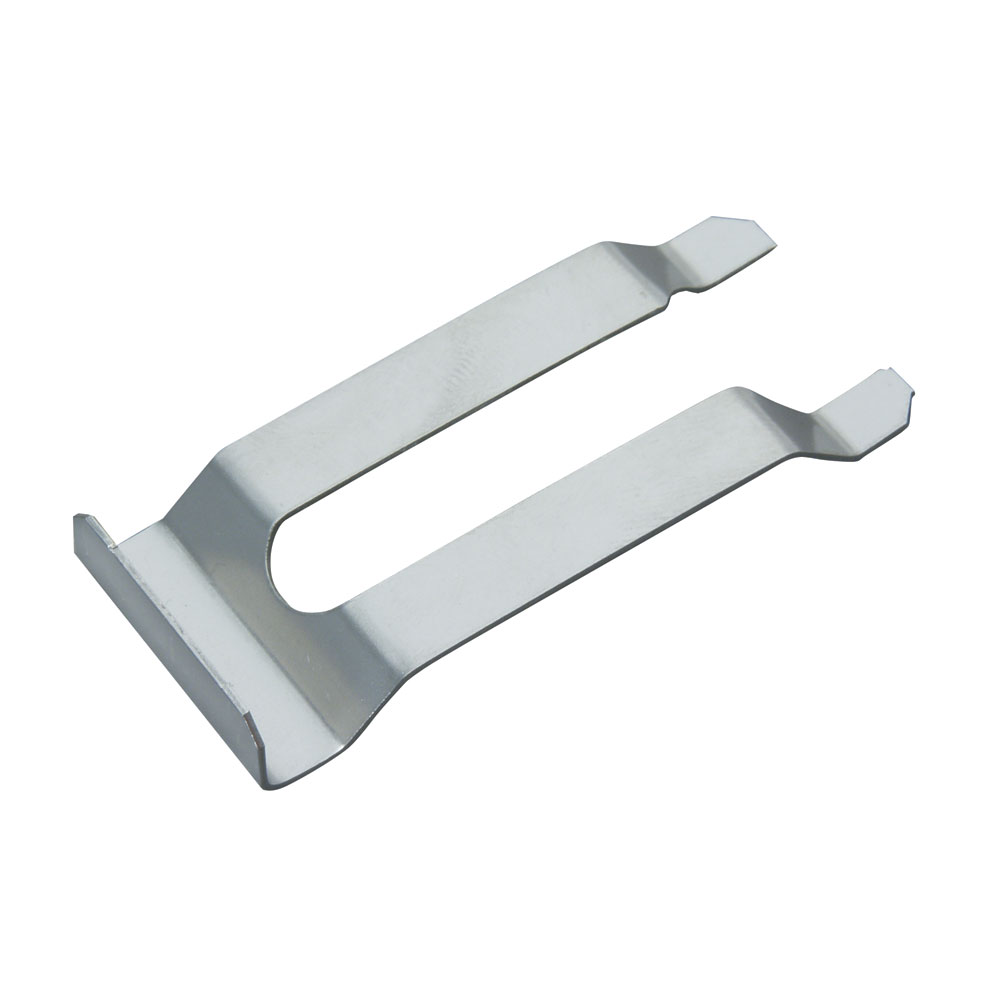

One-Piece Mounting Clip

Part Number: SPR-103-102

Designed for heater mounting with 22 ga (.028″) to 20 ga (.037″) sheet metal.
Thinner or thicker materials require the Two-Piece Mounting Clip.

/Tempco/Data-Assets/07-Infrared-Images/WebR573.jpg

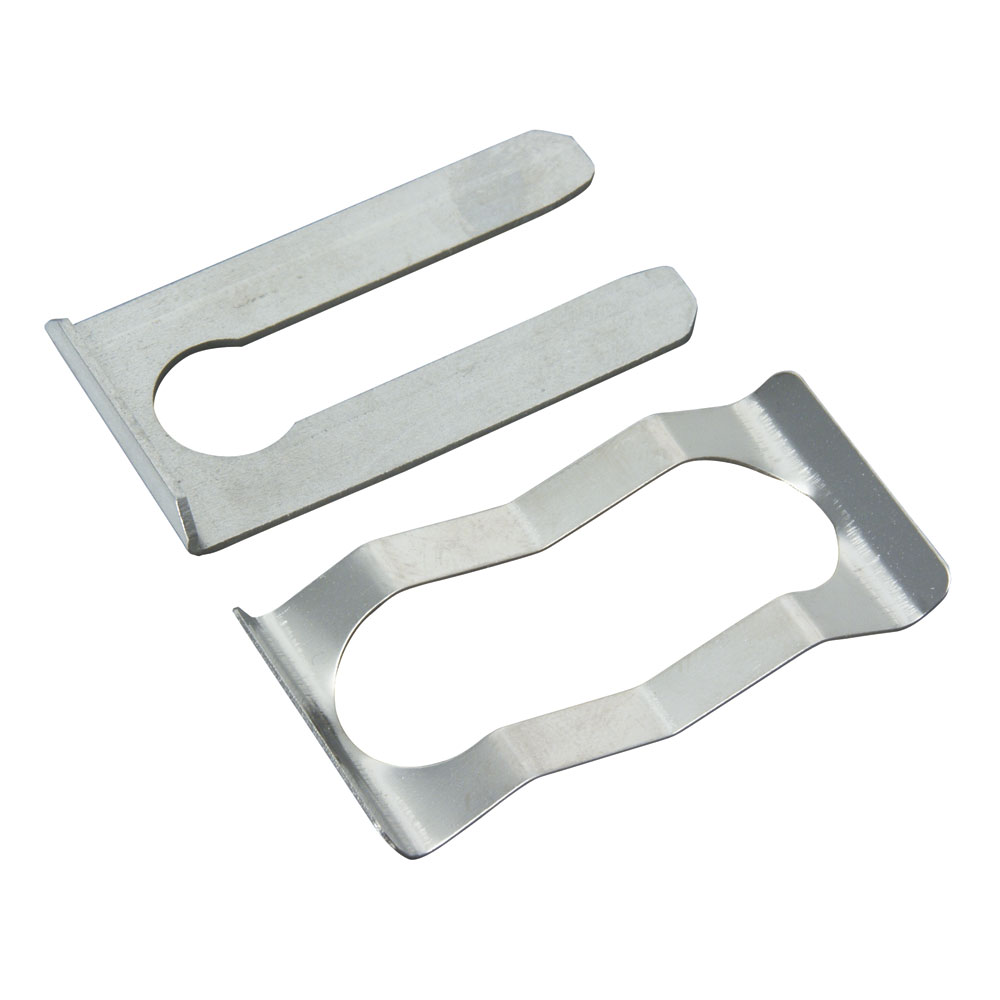

Two-Piece Mounting Clip

Part Number: CRK00008

The two-piece wave spring clip and holding clip assembly is used for mounting heaters in materials thicker than 20 ga (.037″) or thinner than 22 ga (.028″)

/Tempco/Data-Assets/07-Infrared-Images/WebR129.jpg

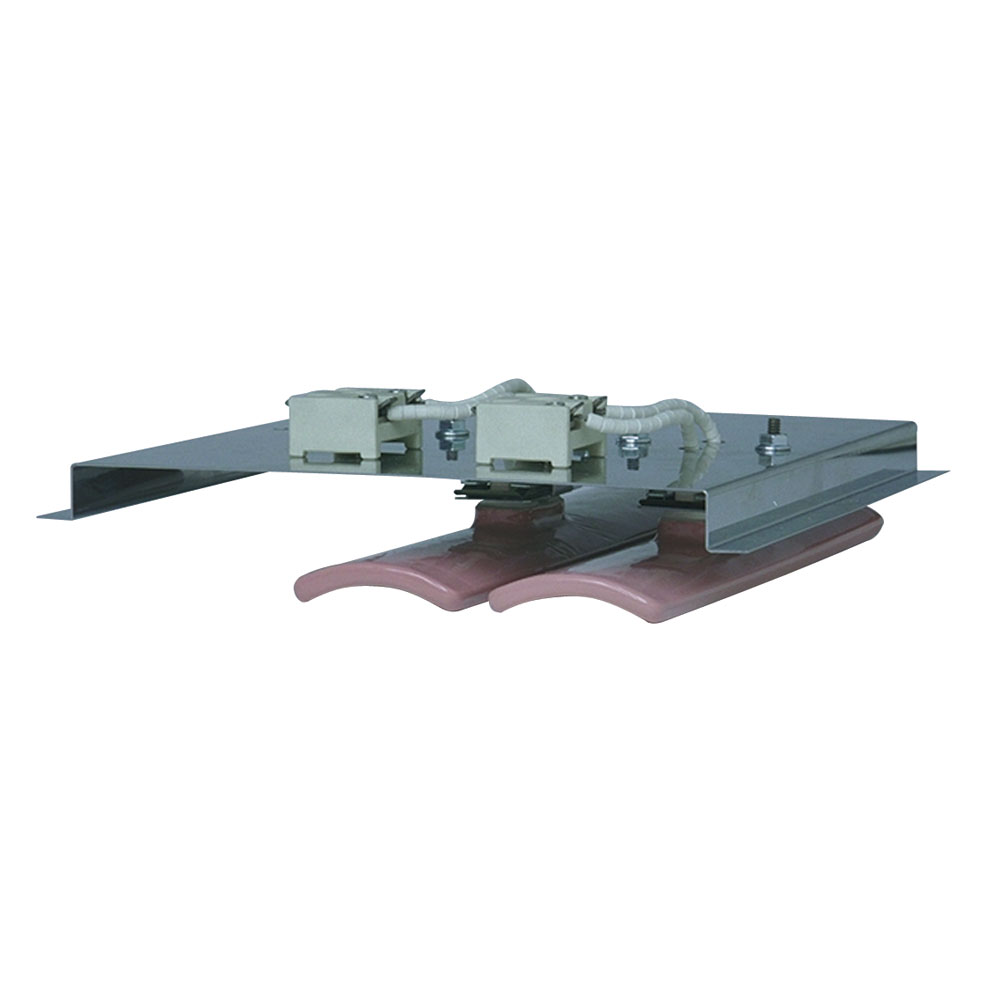

Single Element Mounting Bracket

Part Number: CRK00018

A convenient method for mounting individual E-Mitters to a flat surface or panel for spot heating applications

/Tempco/Data-Assets/07-Infrared-Images/WebR112.jpg

Screw-In Base

Part Number: CRK00016

Ceramic receptacle for use with screw-in bulb E-Mitters
