Tempco Electrical Terminations

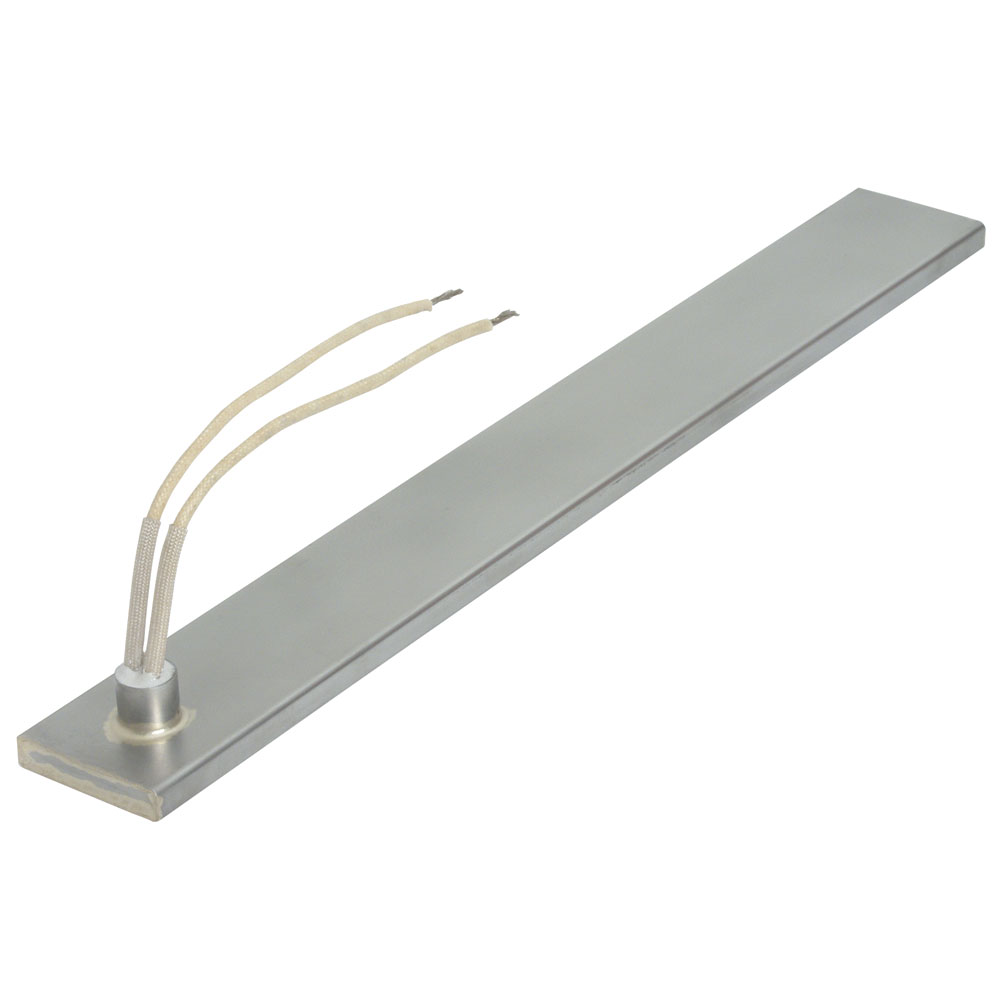

/Tempco/Data-Assets/08-Strip-Images/WebG569.jpg

Type L1: Flexible Lead Wires at Top

Flexible lead wires exit from top of heater. 10″ long leads standard; if longer leads are required, specify.

Maximum Amps: 10 at 240VAC
Maximum Volts: 480

/Tempco/Data-Assets/08-Strip-Images/WebG589.jpg

Type L1: Flexible Lead Wires at Top with Mounting Tabs

Flexible lead wires exit from top of heater. 10″ long leads standard; if longer leads are required, specify.

Maximum Amps: 10 at 240VAC
Maximum Volts: 480

/Tempco/Data-Assets/08-Strip-Images/WebG611New.jpg

Type L: Flexible Lead Wires at Heater End

Flexible lead wires exit from end of heater. 10″ long leads standard; if longer leads are required, specify. Recommended only for tight quarters or where flexibility of the lead wire is required.

Maximum Amps: 10 at 240VAC
Maximum Volts: 480

/Tempco/Data-Assets/08-Strip-Images/WebG640.jpg

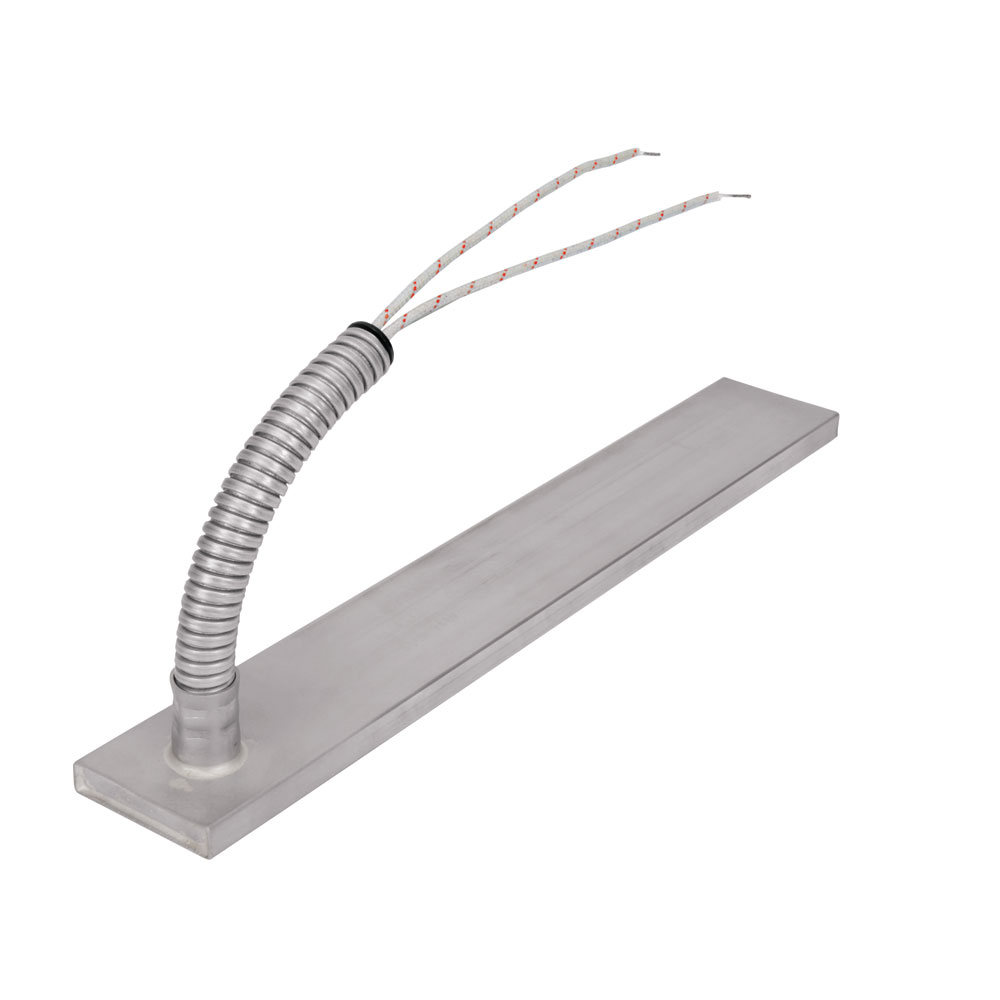

Type R1: Armor Cable at Top

Armor cable provides strength and prevents contamination from getting into the heater. 10″ of armor over 12″ long leads are standard; if longer leads or armor are required, please specify.

Maximum Amps: 10 at 240VA
Maximum Volts: 480

/Tempco/Data-Assets/08-Strip-Images/WebG641.jpg

Type R1: Armor Cable at Top with Mounting Tabs

Armor cable provides strength and prevents contamination from getting into the heater. 10″ of armor over 12″ long leads are standard; if longer leads or armor are required, please specify.

Maximum Amps: 10 at 240VA
Maximum Volts: 480

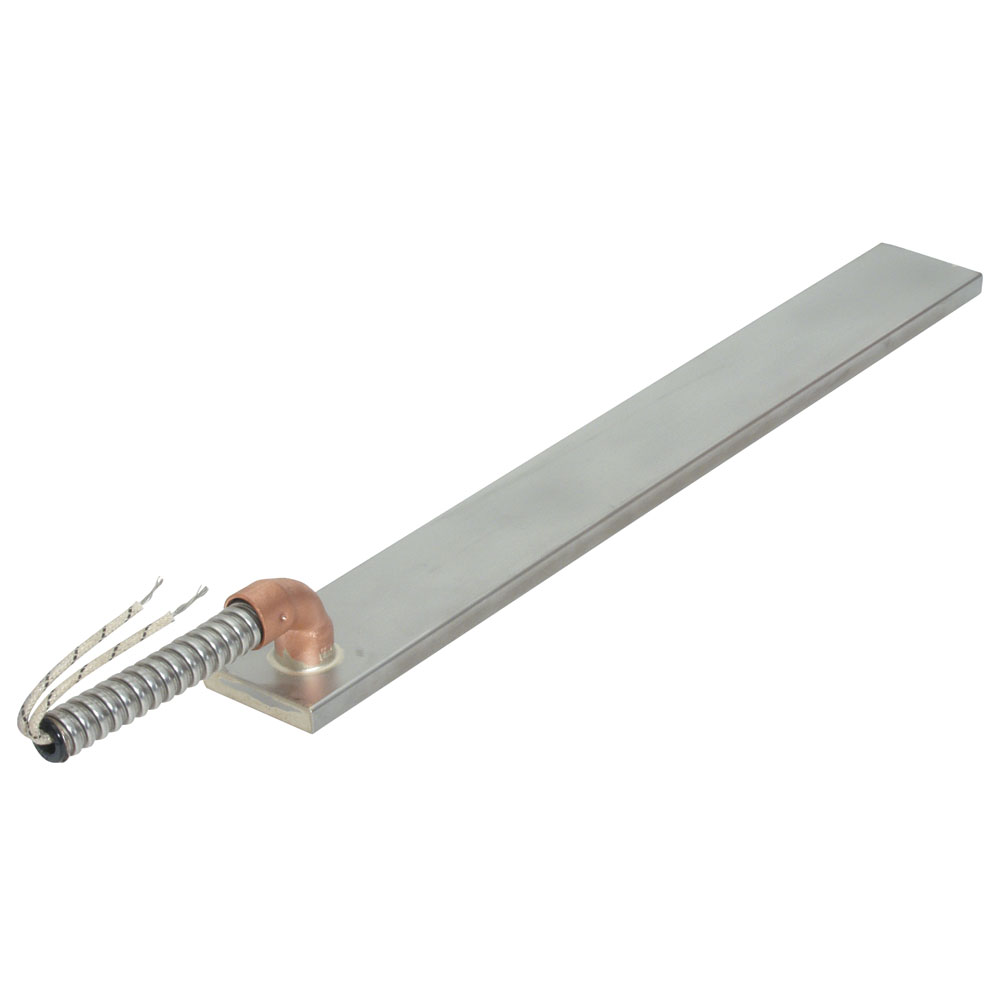

/Tempco/Data-Assets/08-Strip-Images/WebG571.jpg

Type R2: Right-Angle Armor Cable at Top

Right-angle armor cable prevents contamination from getting into the heater. 10″ of armor over 12″ long leads is standard; if longer leads or armor are required, please specify.

Maximum Amps: 10 at 240VAC
Maximum Volts: 480

/Tempco/Data-Assets/08-Strip-Images/WebG571B.jpg

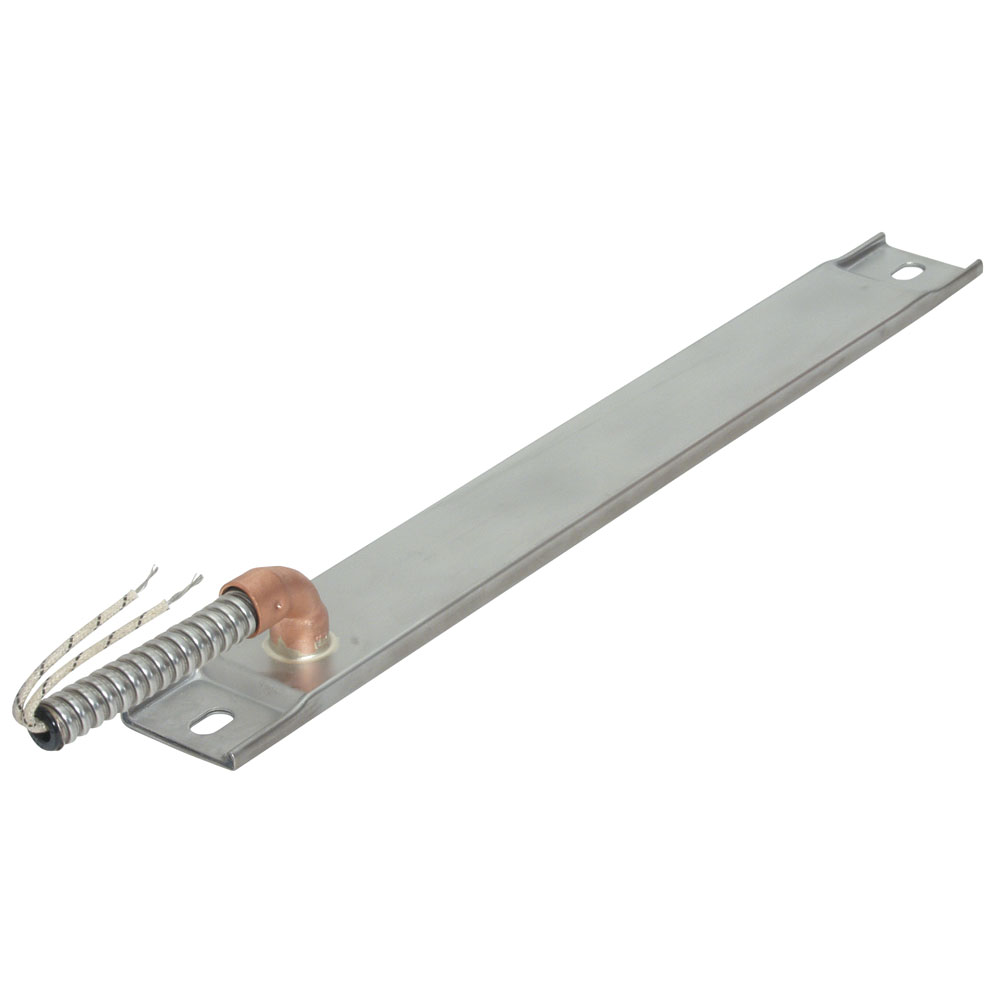

Type R2: Right-Angle Armor Cable at Top with Mounting Tabs

Right-angle armor cable prevents contamination from getting into the heater. 10″ of armor over 12″ long leads is standard; if longer leads or armor are required, please specify.

Maximum Amps: 10 at 240VAC
Maximum Volts: 480

/Tempco/Data-Assets/08-Strip-Images/WebG561.jpg

Type T1: Screw Terminals at each end

10-32 Screw Terminals at each end

/Tempco/Data-Assets/08-Strip-Images/WebG582.jpg

Type T1: Screw Terminals at each end with Mounting Tabs

10-32 Screw Terminals at each end

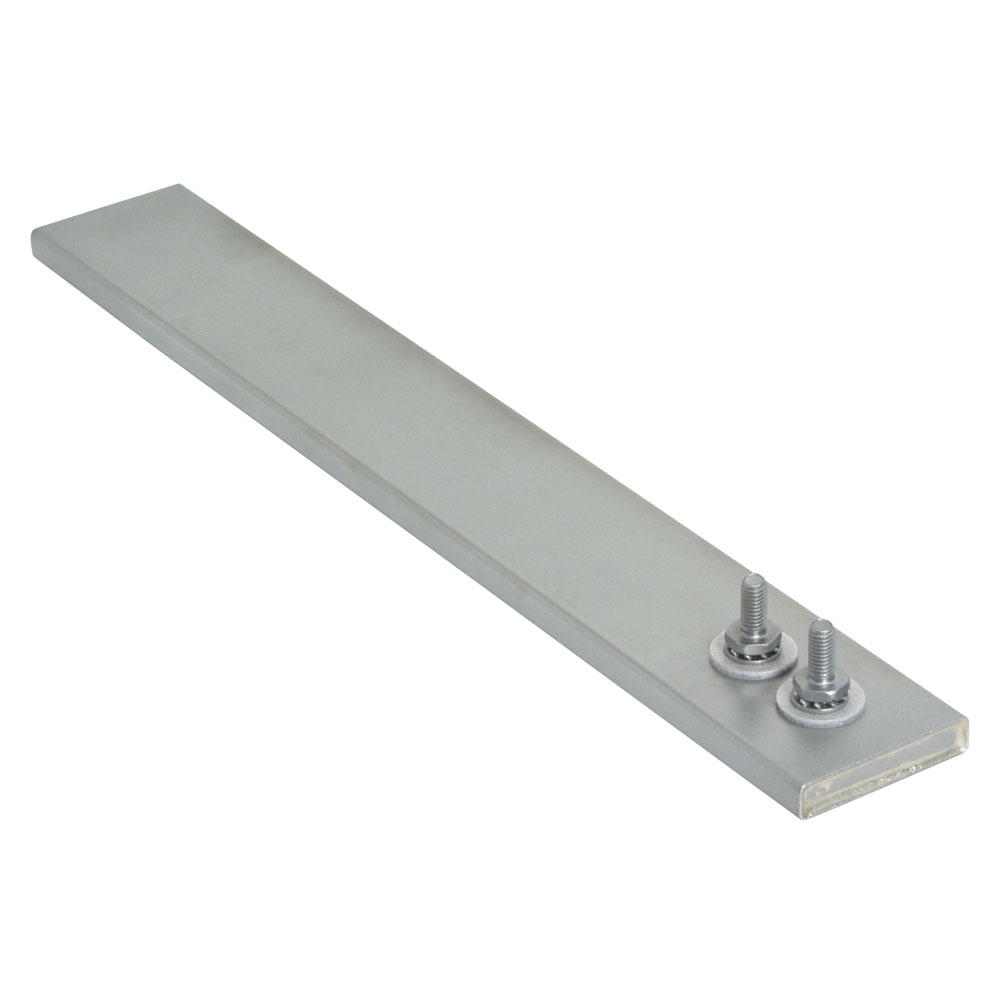

/Tempco/Data-Assets/08-Strip-Images/WebG562.jpg

Type T2: Screw Terminals at one end

10-32 Screw Terminals (Tandem) at one end

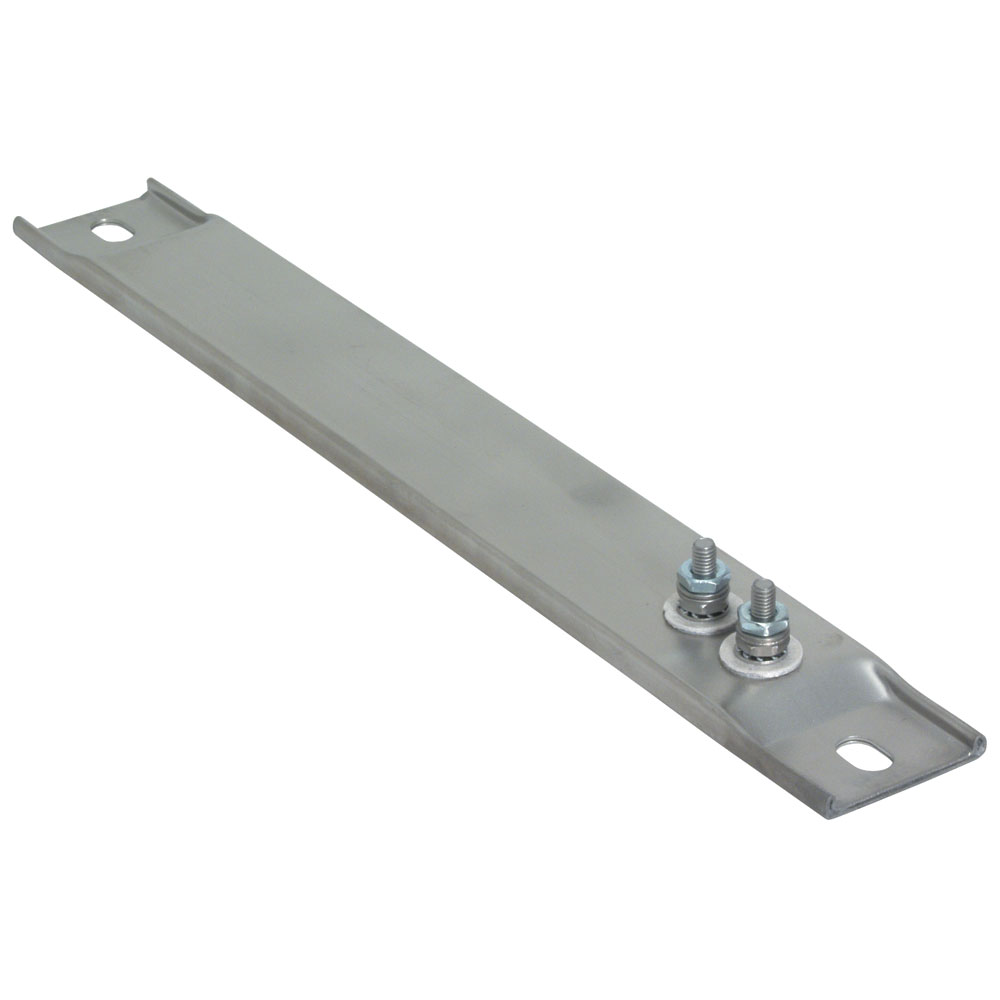

/Tempco/Data-Assets/08-Strip-Images/WebG584.jpg

Type T2: Screw Terminals at one end with Mounting Tabs

10-32 Screw Terminals (Tandem) at one end

/Tempco/Data-Assets/08-Strip-Images/WebG564.jpg

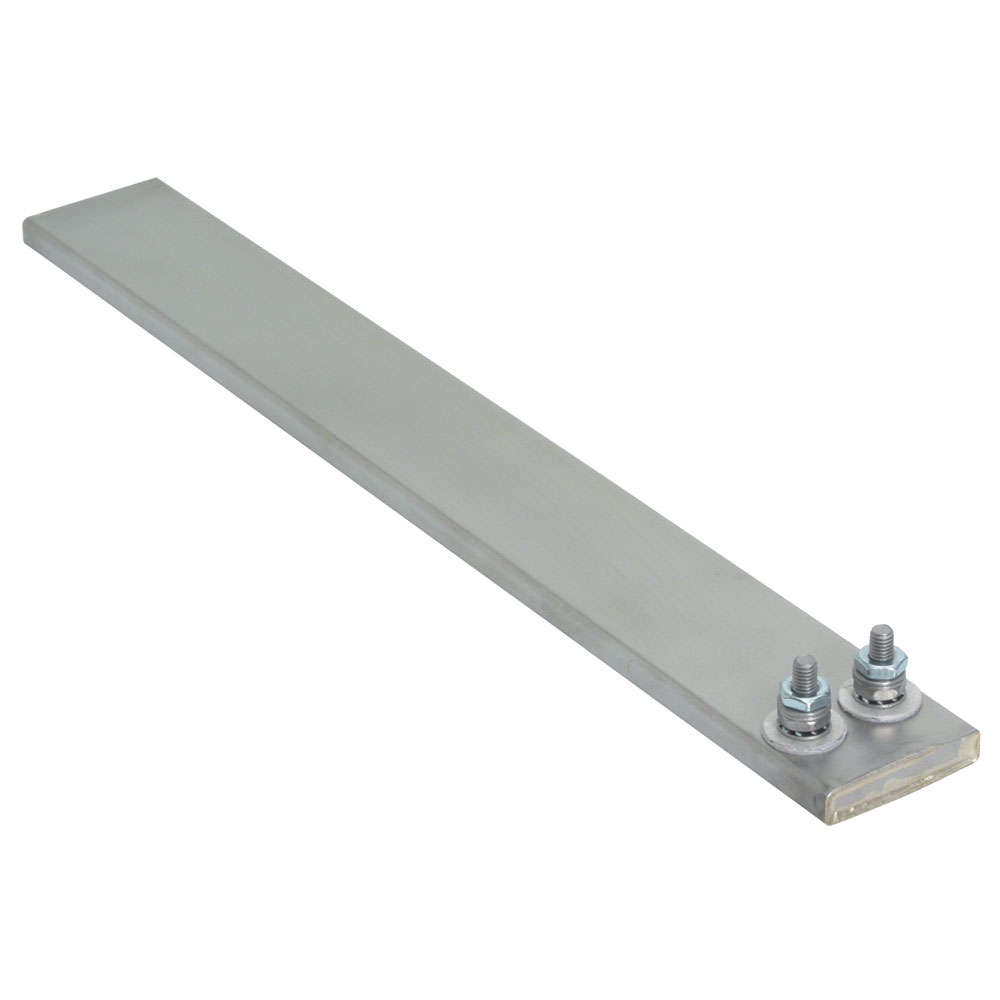

Type T3: Screw Terminals at one end

10-32 Screw Terminals (Parallel) at one end

/Tempco/Data-Assets/08-Strip-Images/WebG586.jpg

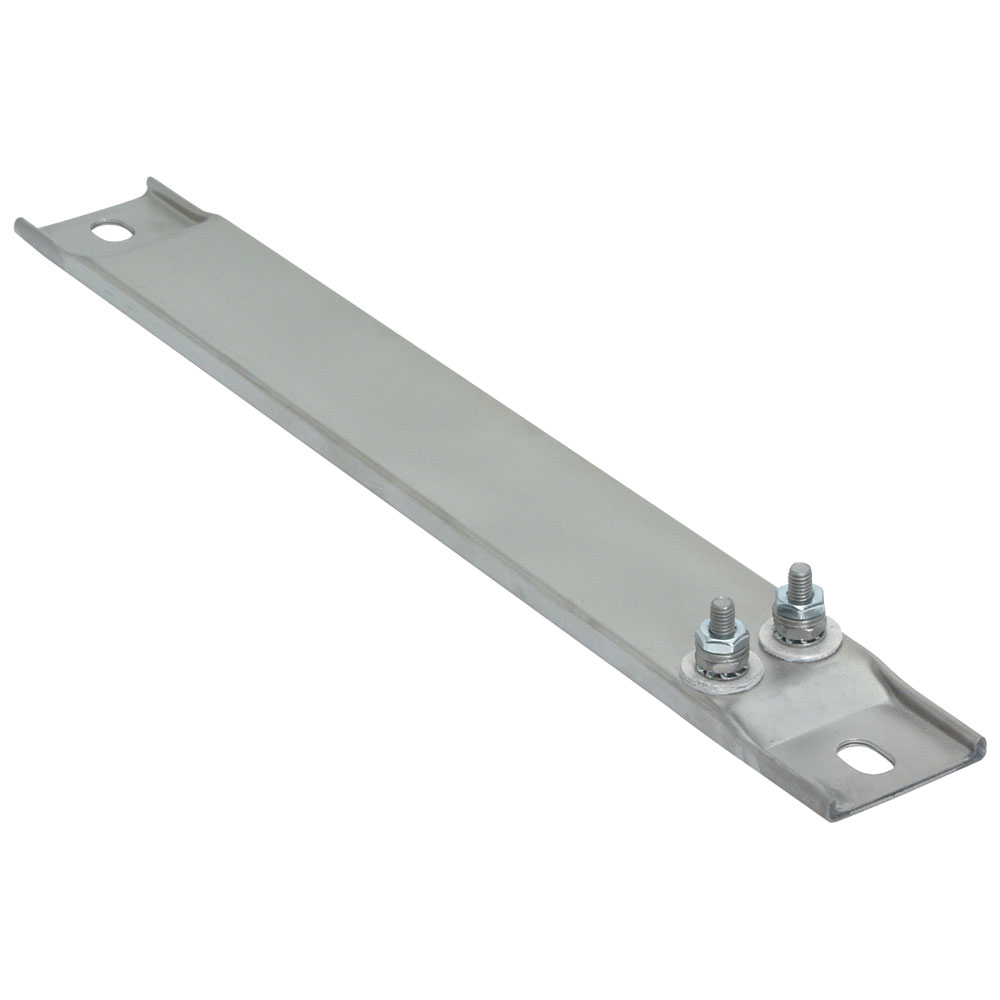

Type T3: Screw Terminals at one end with Mounting Tabs

10-32 Screw Terminals (Parallel) at one end

/Tempco/Data-Assets/08-Strip-Images/WebG566.jpg

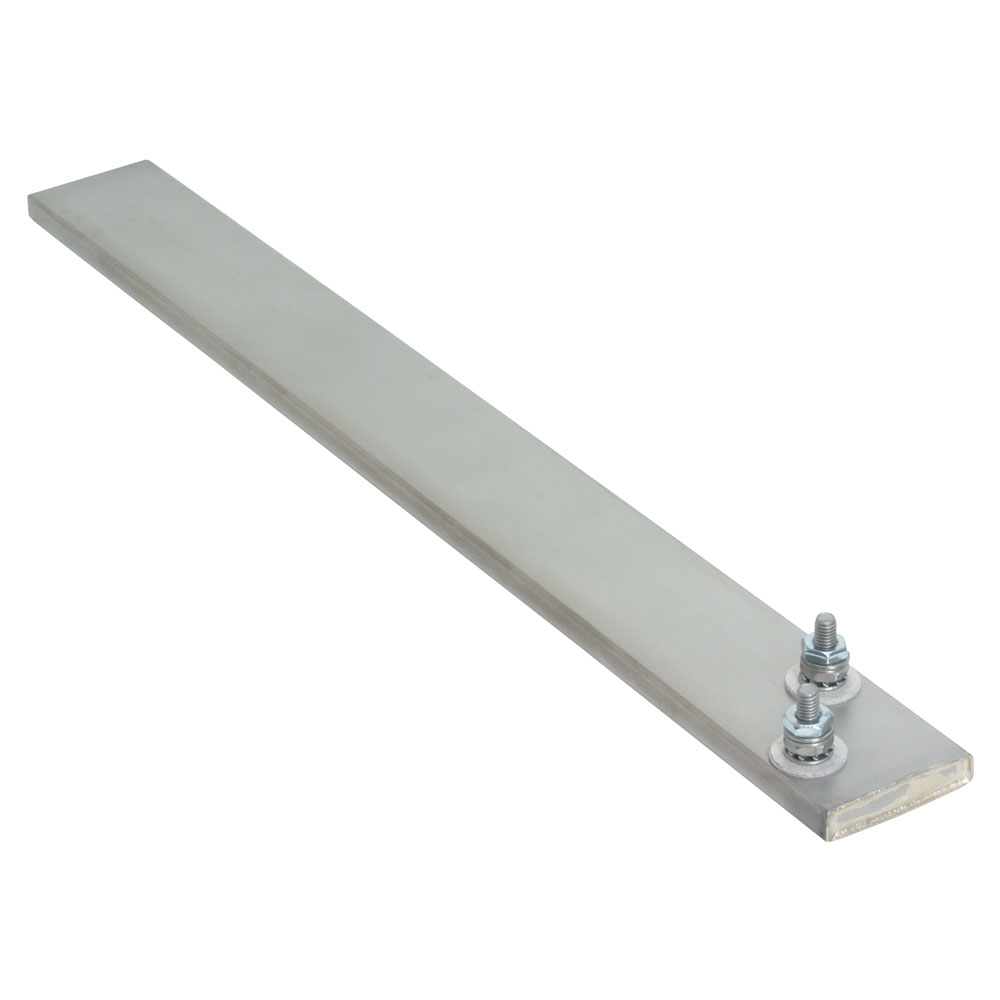

Type T4: Screw Terminals at one end

10-32 Screw Terminals offset (Diagonal) at one end

/Tempco/Data-Assets/08-Strip-Images/WebG590.jpg

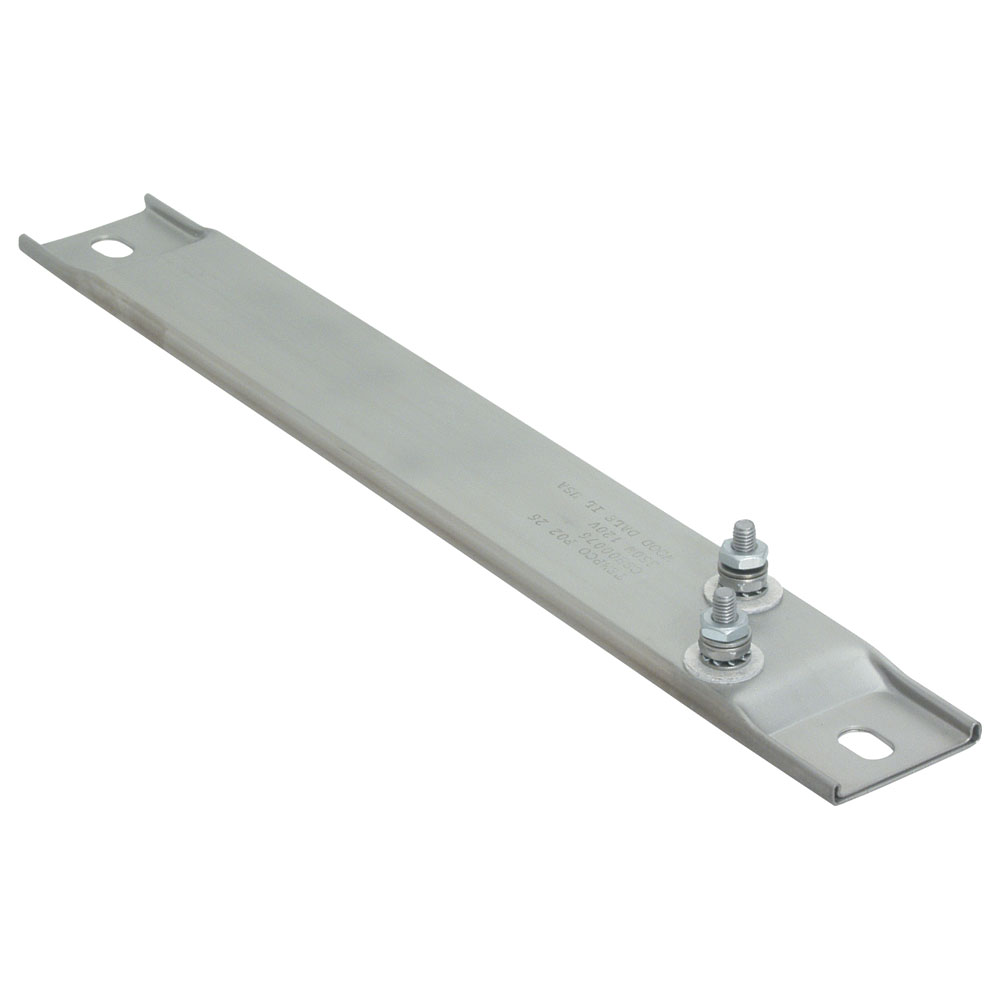

Type T4: Screw Terminals at one end with Mounting Tabs

10-32 Screw Terminals offset (Diagonal) at one end

/Tempco/Data-Assets/08-Strip-Images/WebG573.jpg

Type W1: Wire Braid at Top

Wire braid provides strength and protection to the lead wire insulation, offering sharp bending not possible with armor cable. 10″ of wire braid over 12″ long leads is standard; if longer leads or braid are required, specify.

Maximum Amps: 10 at 240VAC
Maximum Volts: 480

/Tempco/Data-Assets/08-Strip-Images/WebG597.jpg

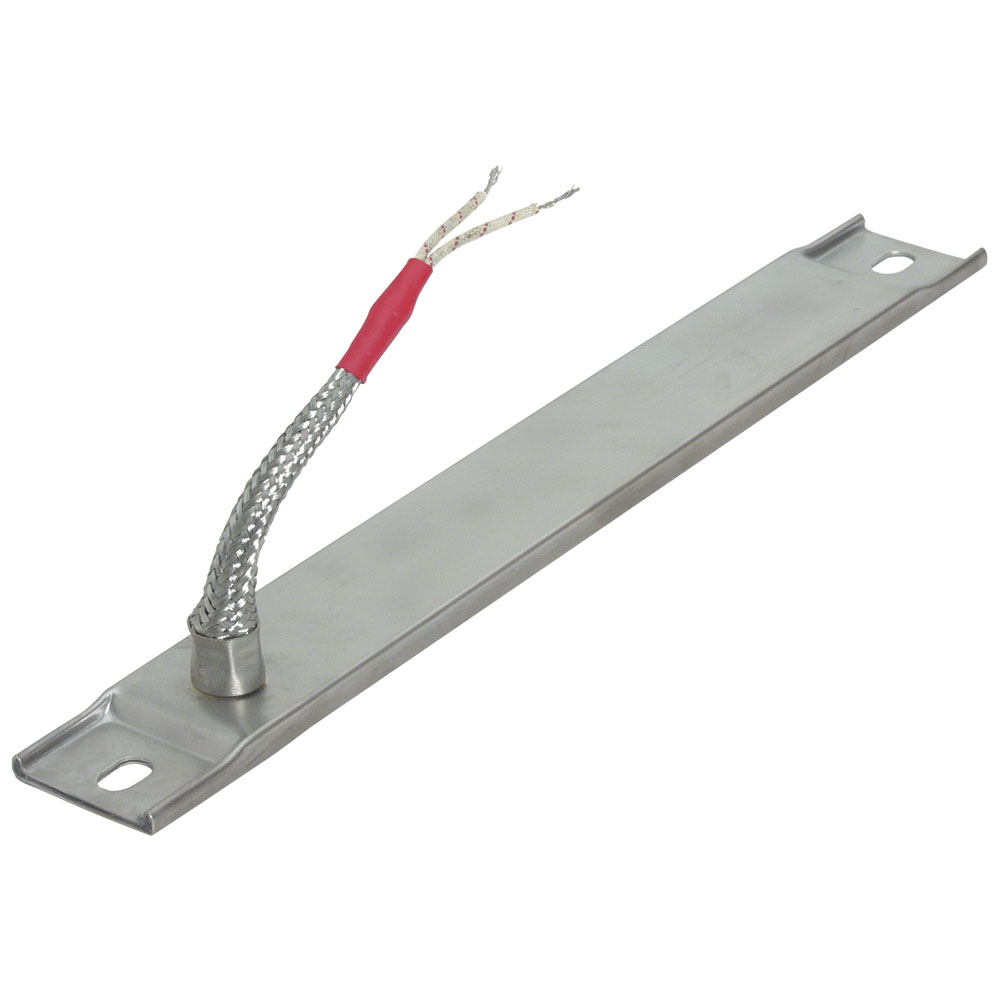

Type W1: Wire Braid at Top with Mounting Tabs

Wire braid provides strength and protection to the lead wire insulation, offering sharp bending not possible with armor cable. 10″ of wire braid over 12″ long leads is standard; if longer leads or braid are required, specify.

Maximum Amps: 10 at 240VAC
Maximum Volts: 480

/Tempco/Data-Assets/08-Strip-Images/WebG642.jpg

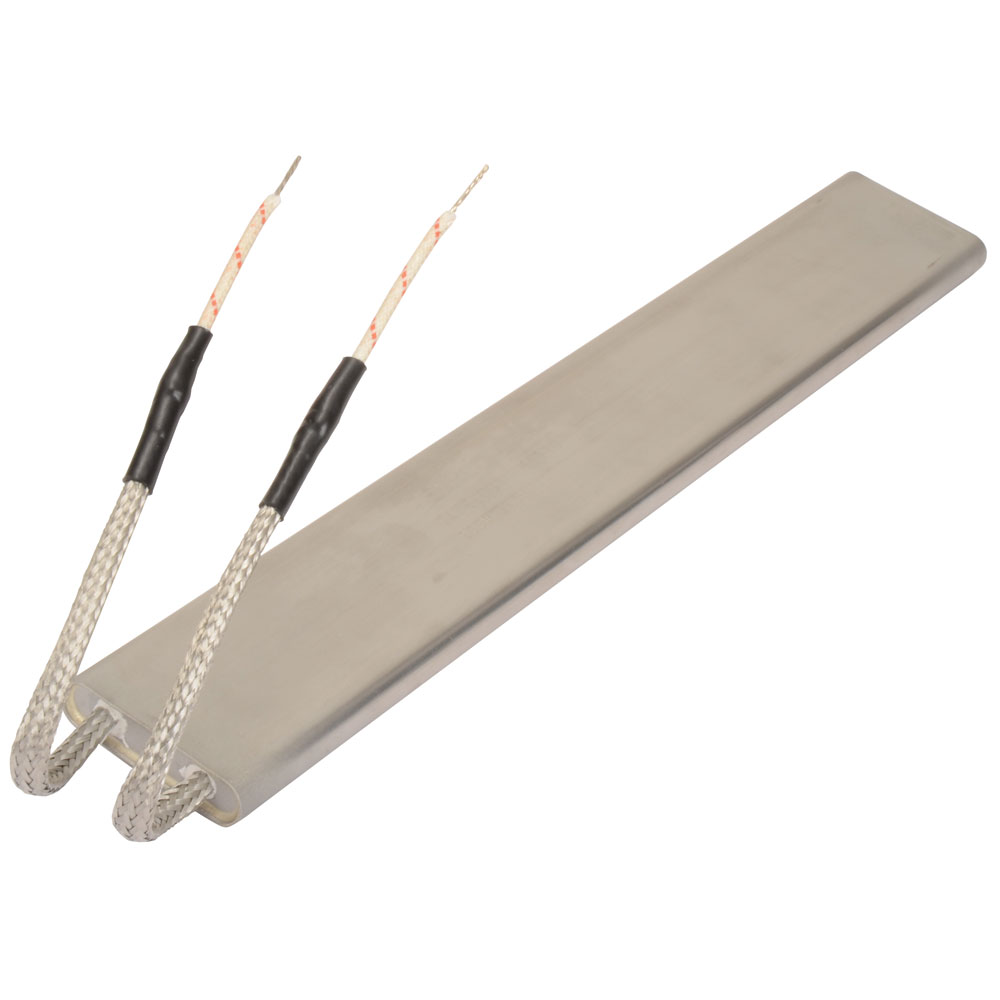

Type W2: Wire Braid at Heater End

Stainless steel braid over each lead wire offers sharp bending not possible with armor cable, as well as abrasion protection. 10″ long leads standard; if longer leads are required, specify. Not available on heaters with tabs.

Maximum Amps: 10 at 240VAC
Maximum Volts: 480
