Tempco Electrical Terminations

/Tempco/Data-Assets/07-Infrared-Images/WebR012.jpg

Type T1: Screw Terminal (Standard)

10-32 thread screw terminal standard termination.

/Tempco/Data-Assets/07-Infrared-Images/WebR672b.jpg

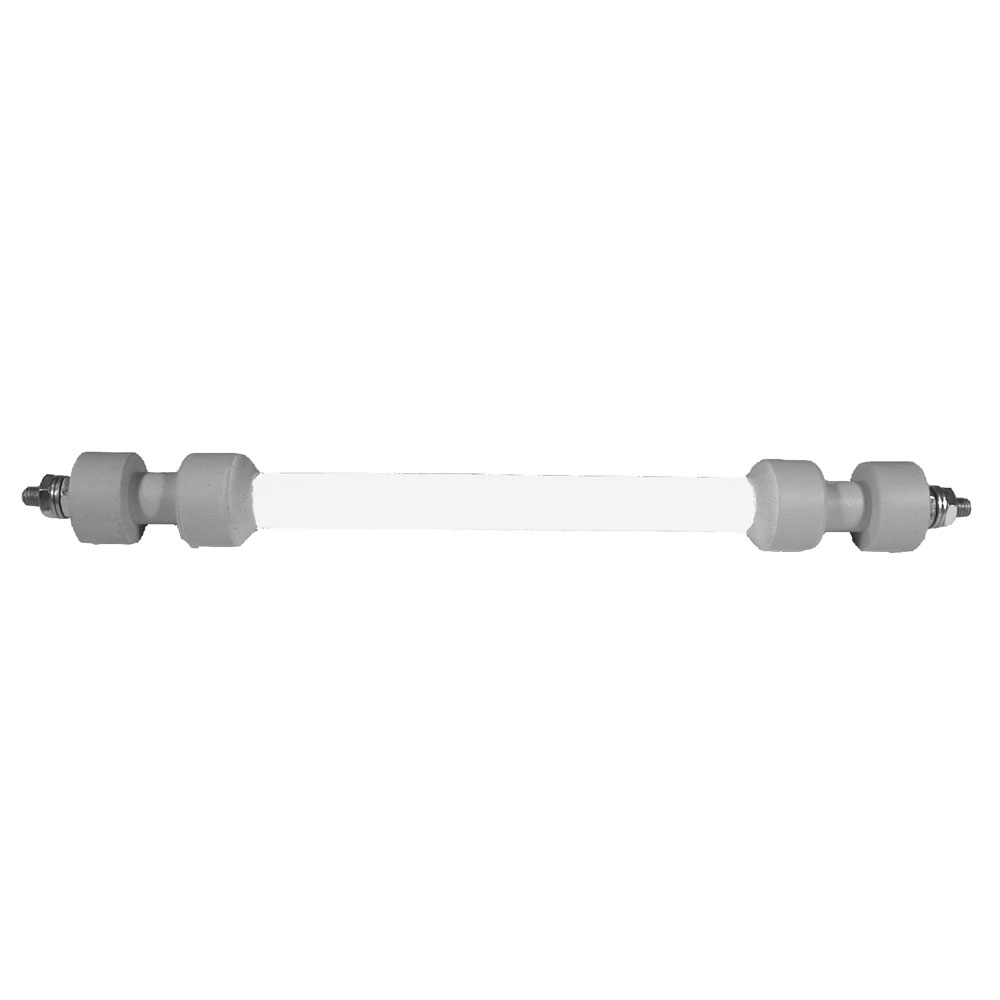

Type T2: Panel Mount Bushings

10-32 thread screw terminals with extension bushings for CRA/TRH housing assemblies.

/Tempco/Data-Assets/07-Infrared-Images/WebR010.jpg

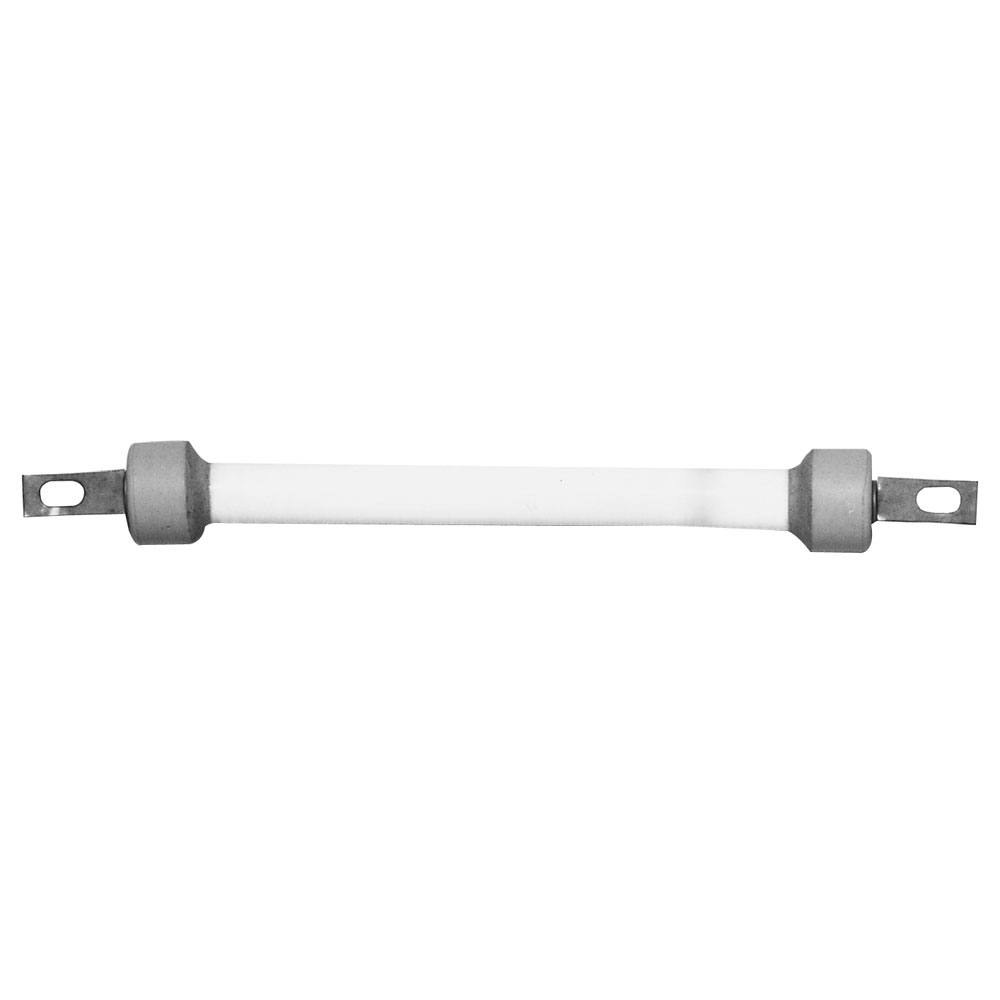

Type ST: Tabs with Slotted Holes

1/2″ wide × 3/4″ long, with a 9/32″ × 3/8″ slot. Alternate mounting method.

/Tempco/Data-Assets/07-Infrared-Images/WebR011.jpg

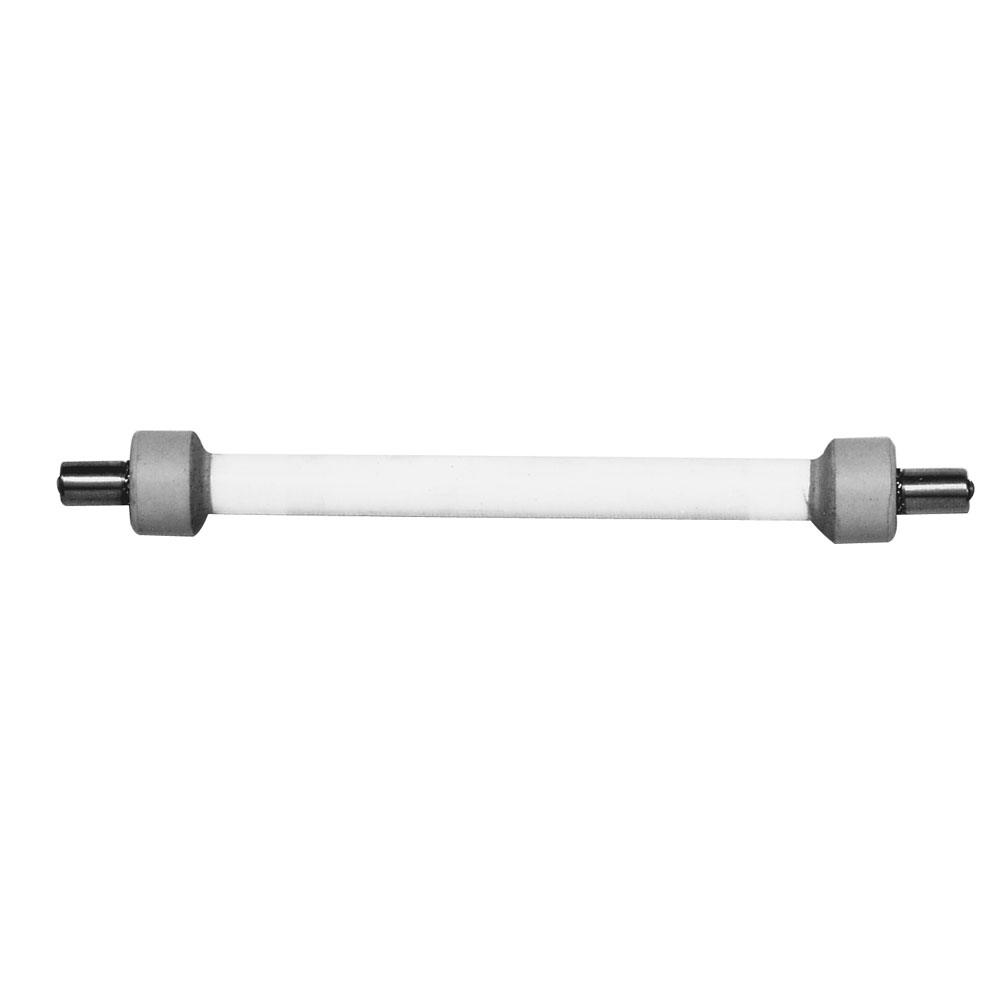

Type FT: Quick Disconnect Fuse Type

Fuse-type connector provides ease of installation. Connectors are 3/8″ OD × 1/2″ long brass.

/Tempco/Data-Assets/07-Infrared-Images/WebR008.jpg

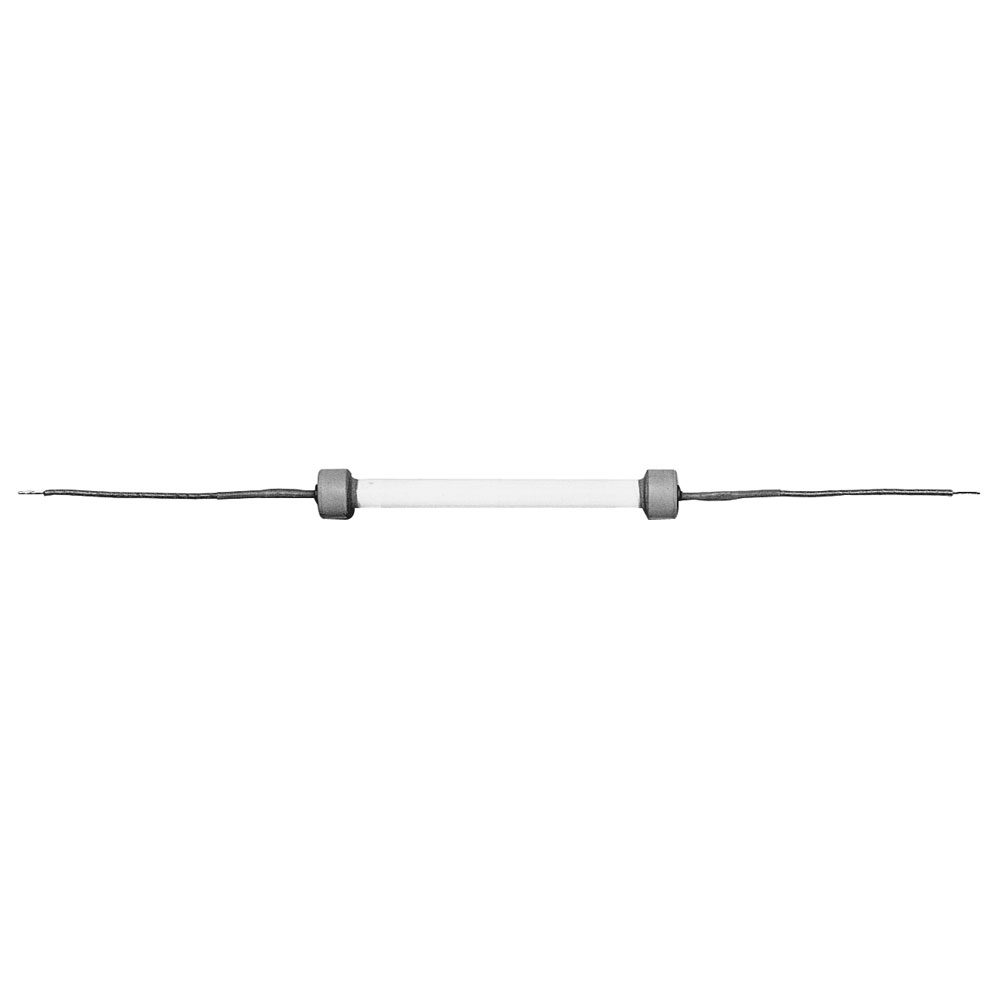

Type L1: Straight-Out Leads

10″ flexible lead wire externally spliced standard. If longer leads are required, specify.

/Tempco/Data-Assets/07-Infrared-Images/WebR009.jpg

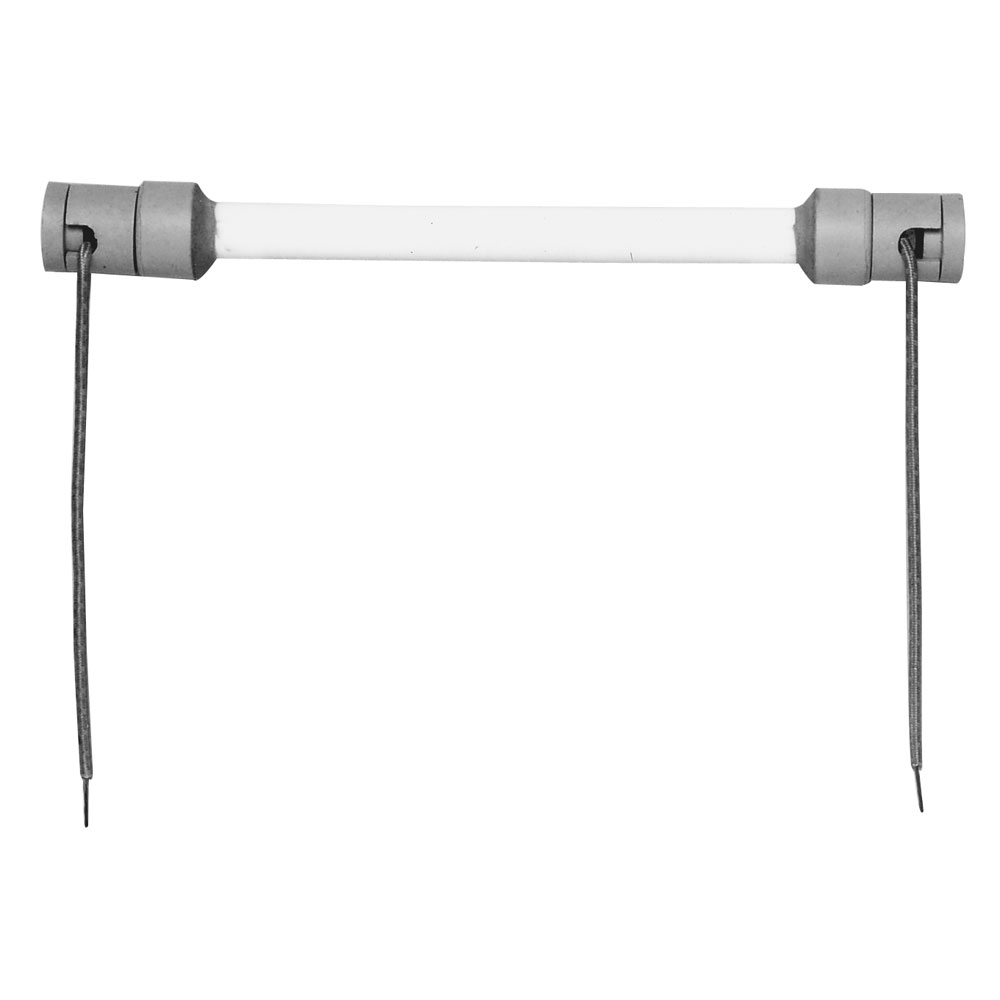

Type C4: Ceramic Caps with Leads

This termination provides 10-32 screw terminals insulated with ceramic terminal covers. Screws are prewired with 10″ flexible lead wire. If longer leads are required, specify (also for T1 or T2).
