Tempco Construction Styles

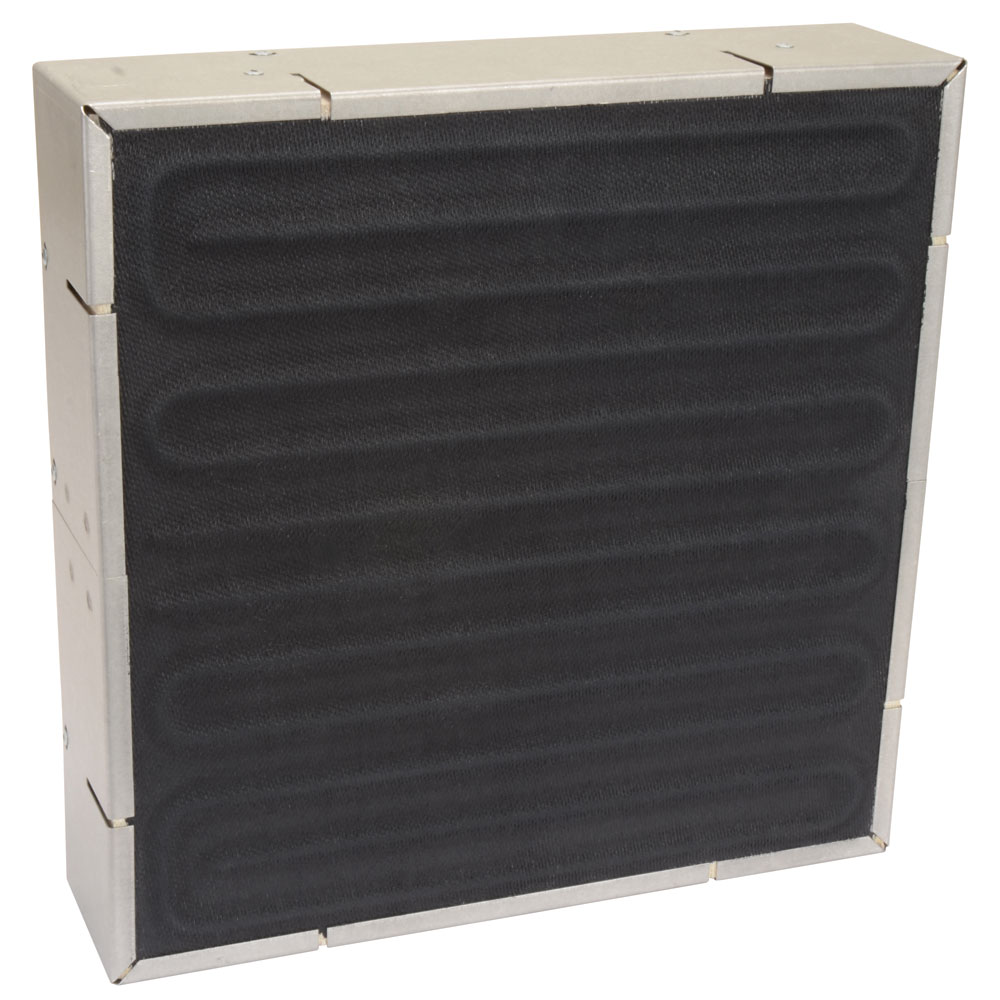

/Tempco/Data-Assets/07-Infrared-Images/WebR787.jpg

Style RPB

Maximum Size: See Preconfigured Part Number pages for Standard Sizes; Custom sizes up to 30″W × 84″L can be manufactured.
Maximum Watt Density: 25 Watts/in2
Maximum Voltage: Voltage can be single, dual or 3-phase up to 600 VAC (depending on heater size and wattage)
Maximum Face Temperature: 900°C (1652°F)
Wavelength Range: Between 2.5 and 6.0 microns (µm)
Distributed Wattage & Zoning: Yes, dependent on size

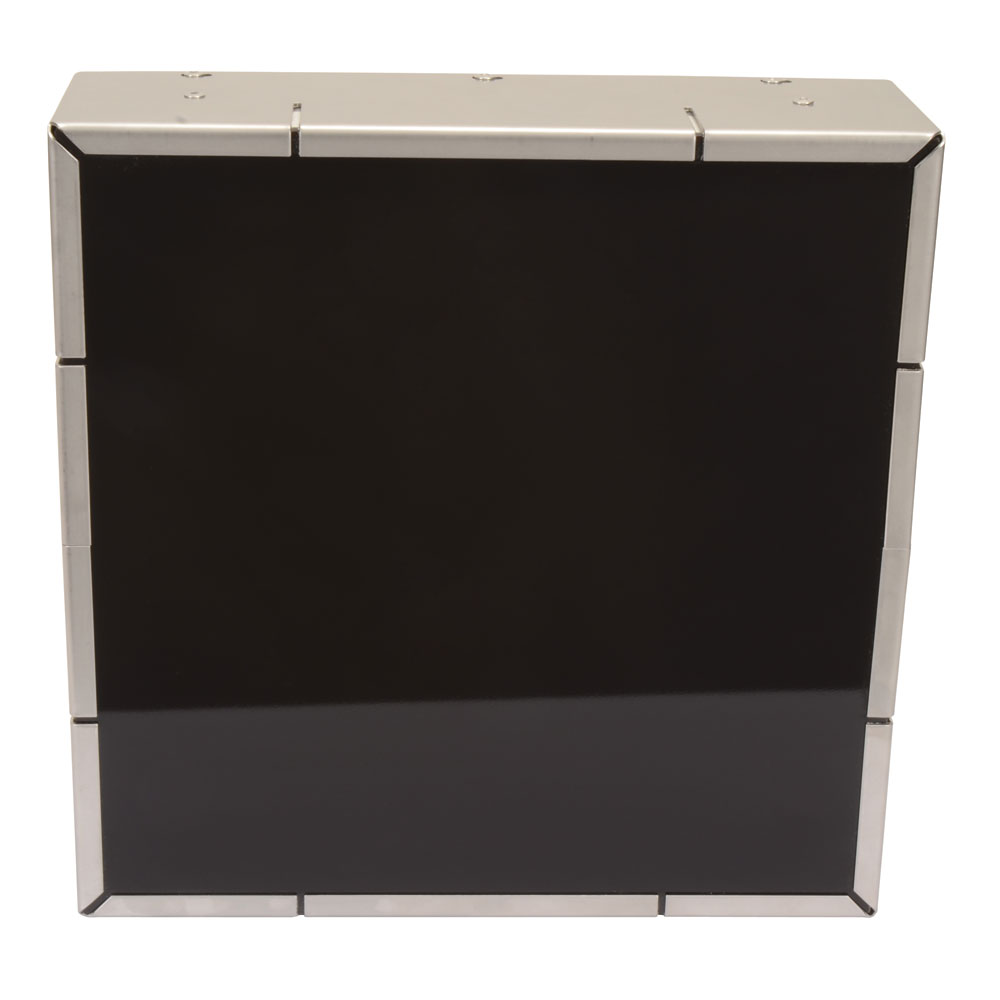

/Tempco/Data-Assets/07-Infrared-Images/WebR788.jpg

Style RPG

Maximum Size: See Preconfigured Part Number pages for Standard Sizes; Custom sizes up to 34″W × 36″L can be manufactured.
Maximum Watt Density:20 Watts/in2
Maximum Voltage: Voltage can be single, dual or 3-phase up to 600 VAC (depending on heater size and wattage)
Maximum Face Temperature: 750°C (1382°F)
Wavelength Range: Between 2.5 and 6.0 microns (µm)
Distributed Wattage & Zoning: Yes, dependent on size

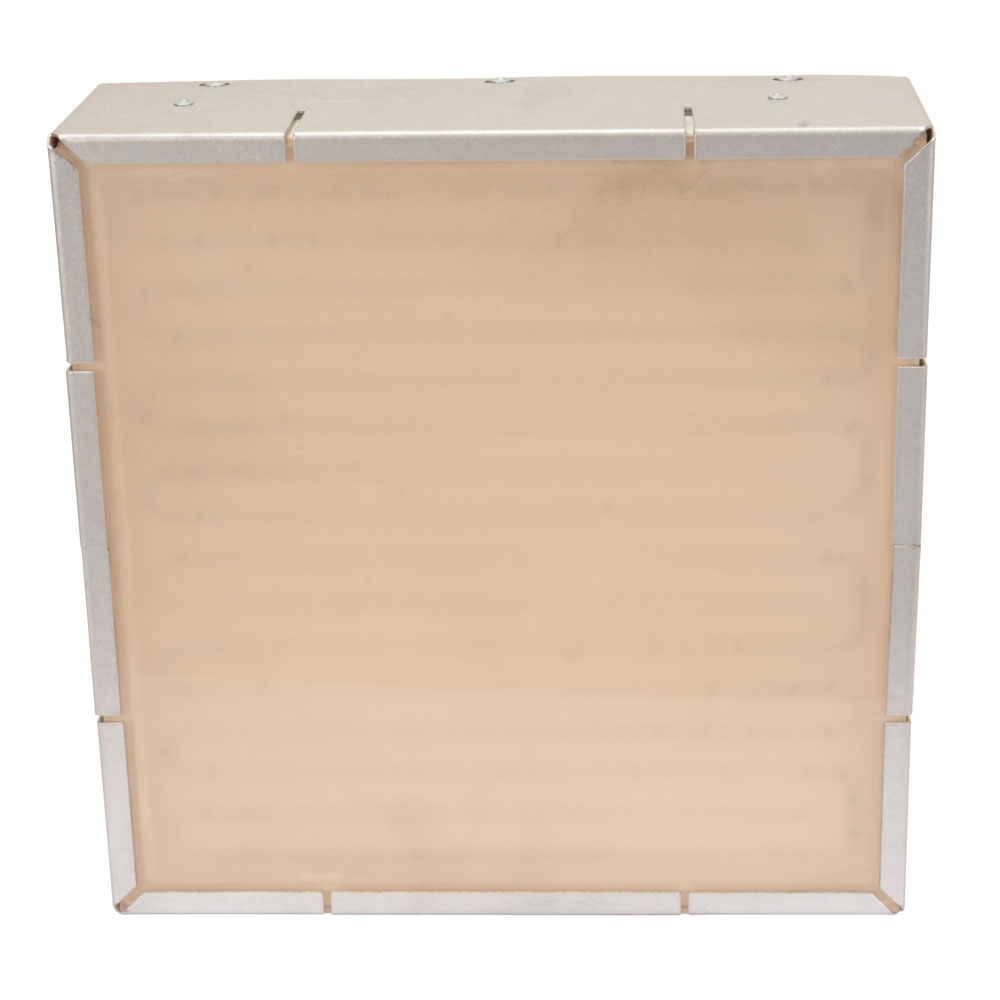

/Tempco/Data-Assets/07-Infrared-Images/WebR789.jpg

Style RPW

Maximum Size: See Preconfigured Part Number pages for Standard Sizes; Custom sizes up to 24″W × 24″L can be manufactured.
Maximum Watt Density: 40 Watts/in2
Maximum Voltage: Voltage can be single, dual or 3-phase up to 600 VAC (depending on heater size and wattage)
Maximum Face Temperature: 800°C (1472°F)
Wavelength Range: Between 2.5 and 6.0 microns (µm)
Distributed Wattage & Zoning: Yes, dependent on size

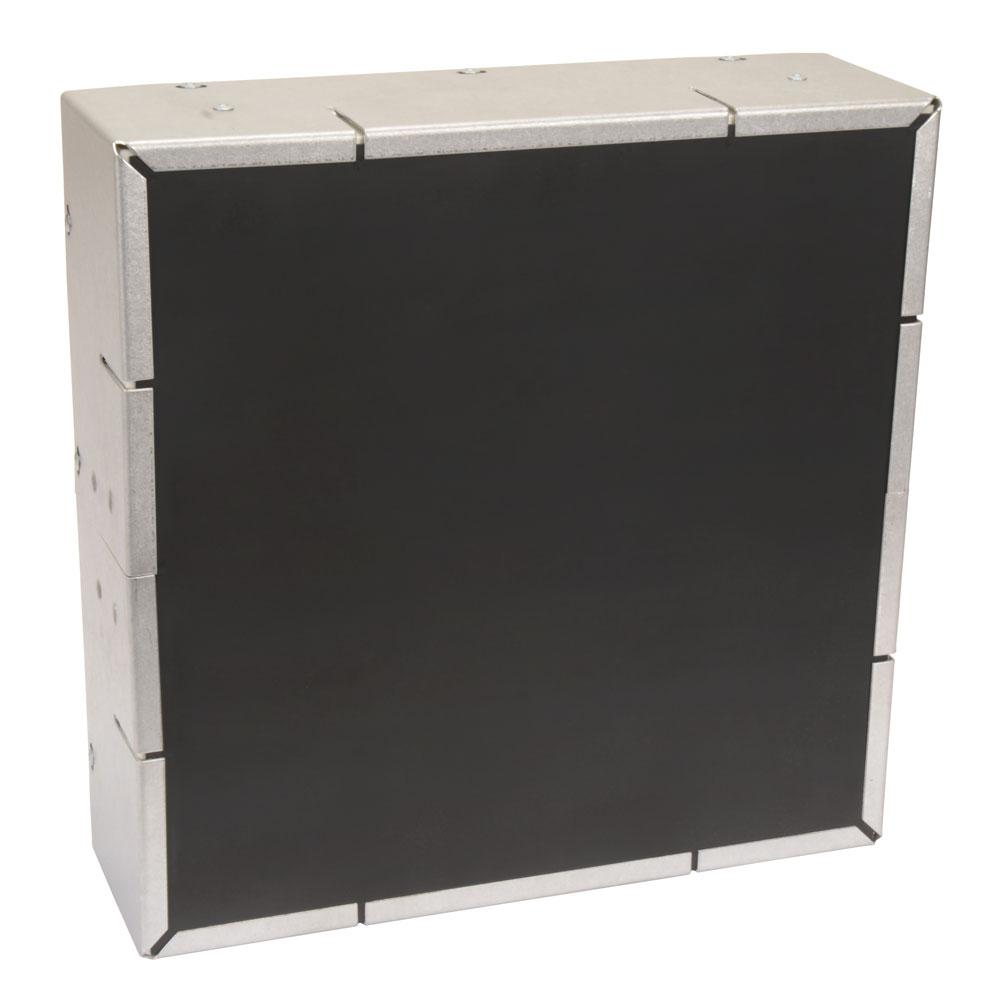

/Tempco/Data-Assets/07-Infrared-Images/WebR790.jpg

Style RPM

Maximum Size: See Preconfigured Part Number pages for Standard Sizes; Custom sizes up to 24″W × 48″L can be manufactured.
Maximum Watt Density:15 Watts/in2
Maximum Voltage: Voltage can be single, dual or 3-phase up to 600 VAC (depending on heater size and wattage)
Maximum Face Temperature: 700°C (1292°F)
Wavelength Range: Between 3.0 and 6.0 microns (µm)
Distributed Wattage & Zoning: Yes, dependent on size

Series Size

Standard thickness

Thickness: 3

Optional thickness

Thickness Range: 1.5″ – 5″
Consult Tempco with your requirements.

Mounting Styles

Mounting Screw Studs

Manufactured standard with Mounting Screw Studs: 1/4-20″ x 1″L and can be mounted in any direction

Housing Materials

Standard Housing Material

Heavy gauge aluminized steel

Optional Housing Material

304 Stainless Steel

Electrical Terminations

Standard Termination

Stainless Steel power screw terminals, Electrical junction box, standard
