Tempco Construction Styles

/Tempco/Data-Assets/08-Strip-Images/WebG582.jpg

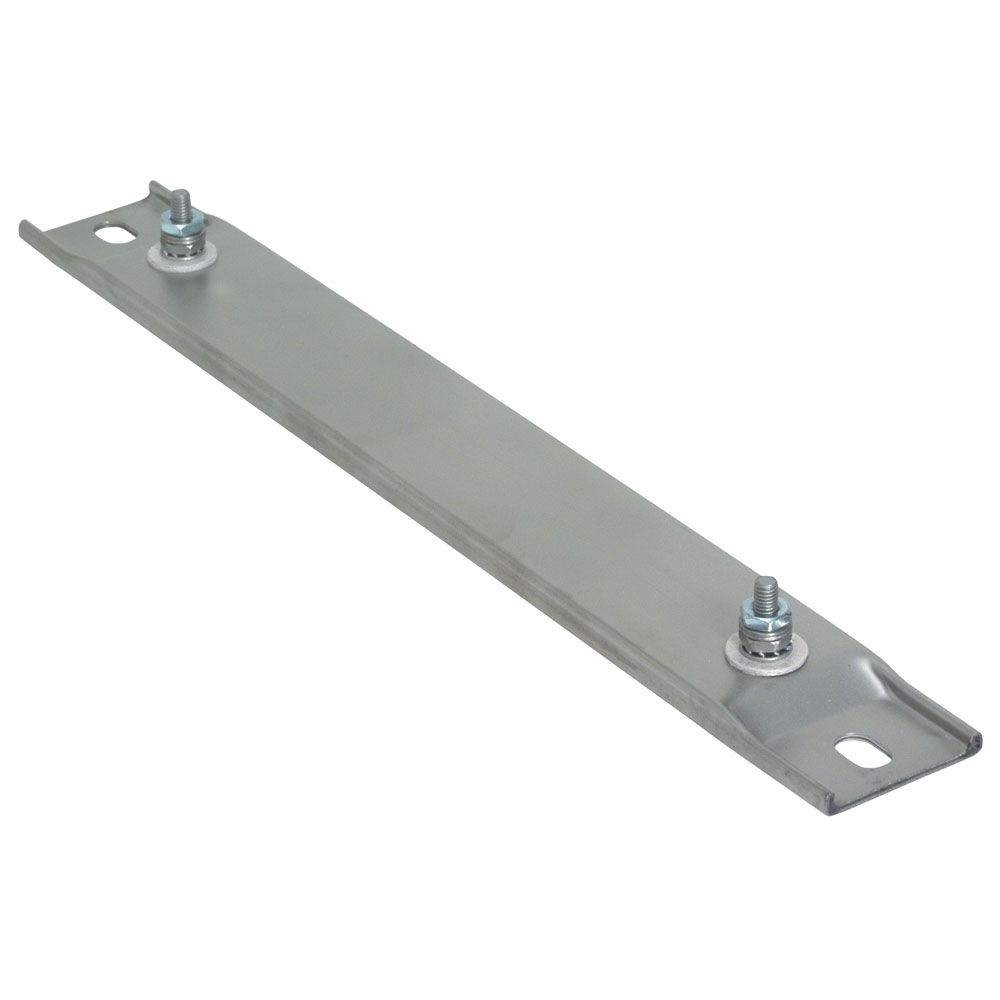

Channel Strip Heater With Mounting Tabs

Heaters are available with mounting tabs. When supported by mounting tabs, the terminal end should be secured firmly. Opposite end should be loose to allow for thermal expansion.

Mounting Slot Size
Standard 5/16″ × 1/2″
Special Bushings 1/2″ × 5/8″

/Tempco/Data-Assets/08-Strip-Images/WebG561.jpg

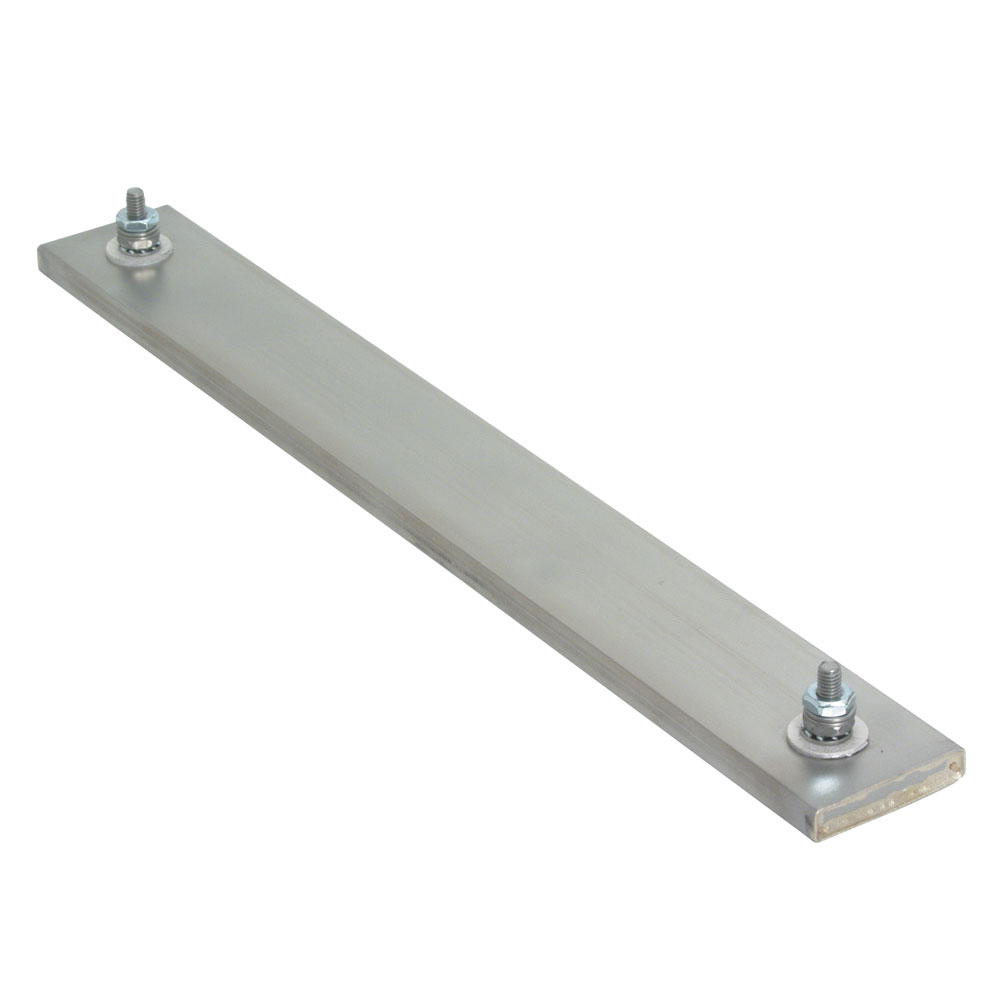

Channel Strip Heater Without Mounting Tabs

Heaters without mounting tabs have ends that are silver soldered shut to prevent moisture and contaminants from entering the heater.
For surface mounting installations, Channel Strip heaters must be securely clamped along their entire length to a smooth metal surface.
