Tempco VS Glow® Infrared Heaters

All ceramic housing construction with the reflective surface gold coated. Element configurations include Tungsten in Halogen-Filled Lamp, Star-Wound Tungsten in Evacuated Lamp and Fe-Cr-Al Resistance Wire in Air.

Eagle Sensors & Controls, Division of Excel Automation LLC, is an authorized Tempco distributor. Contact us for sales & technical support for Tempco heaters, Tempco sensors, Tempco temperature controllers, Tempco process heating systems & all other Tempco products.

Construction Styles

/Tempco/Data-Assets/07-Infrared-Images/WebR804.jpg

Series VSA

Wavelength:Short Wave Infrared Radiation up to 220 watts per linear inch
Filament Temperature: 2500K
Lamp: Tungsten in Halogen-Filled
Watts: 150 – 2500
Standard Lamp Voltages: 120 & 230/240

/Tempco/Data-Assets/07-Infrared-Images/WebR805.jpg

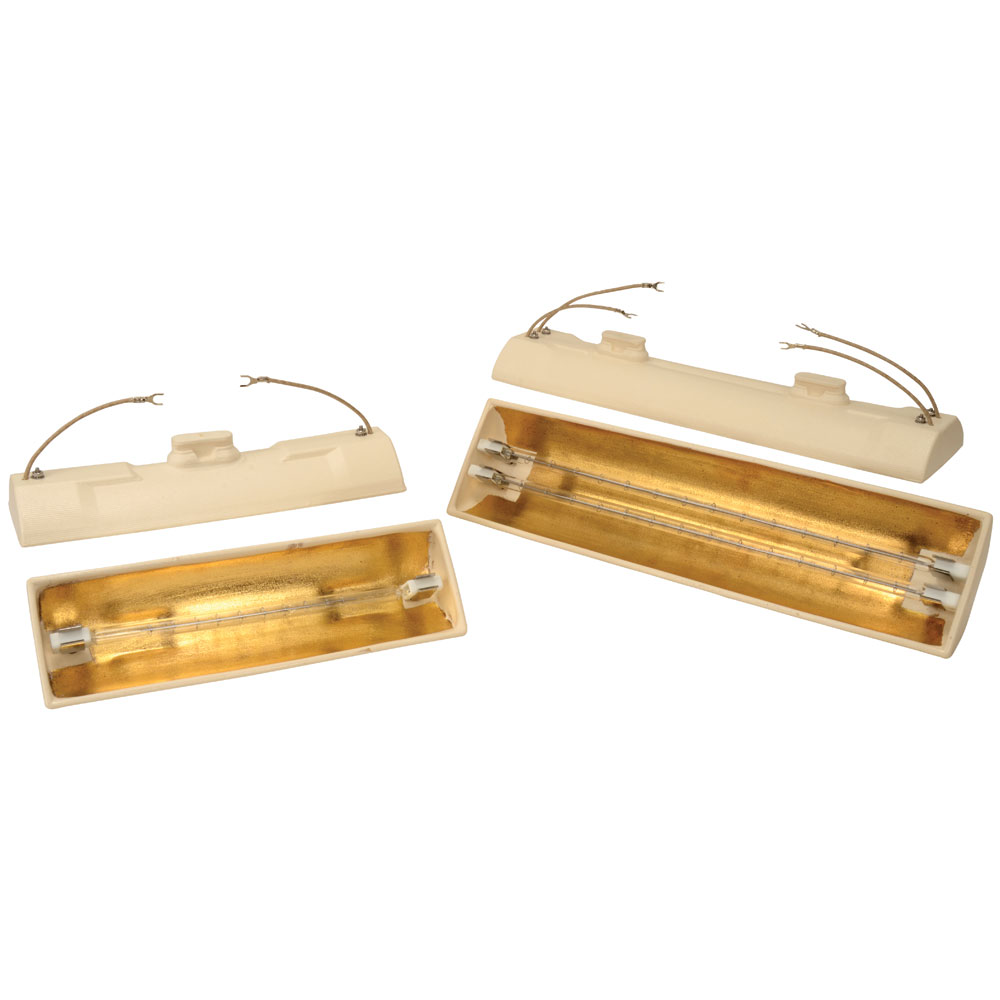

Series VSC

Wavelength: Medium wave Infrared Radiation up to 116 watts per linear inch
Filament Temperature: 1500K
Lamp:Star-Wound Tungsten in Evacuated Lamp
Watts: 75 – 1300
Standard Lamp Voltages: 120 & 230/240

/Tempco/Data-Assets/07-Infrared-Images/WebR806.jpg

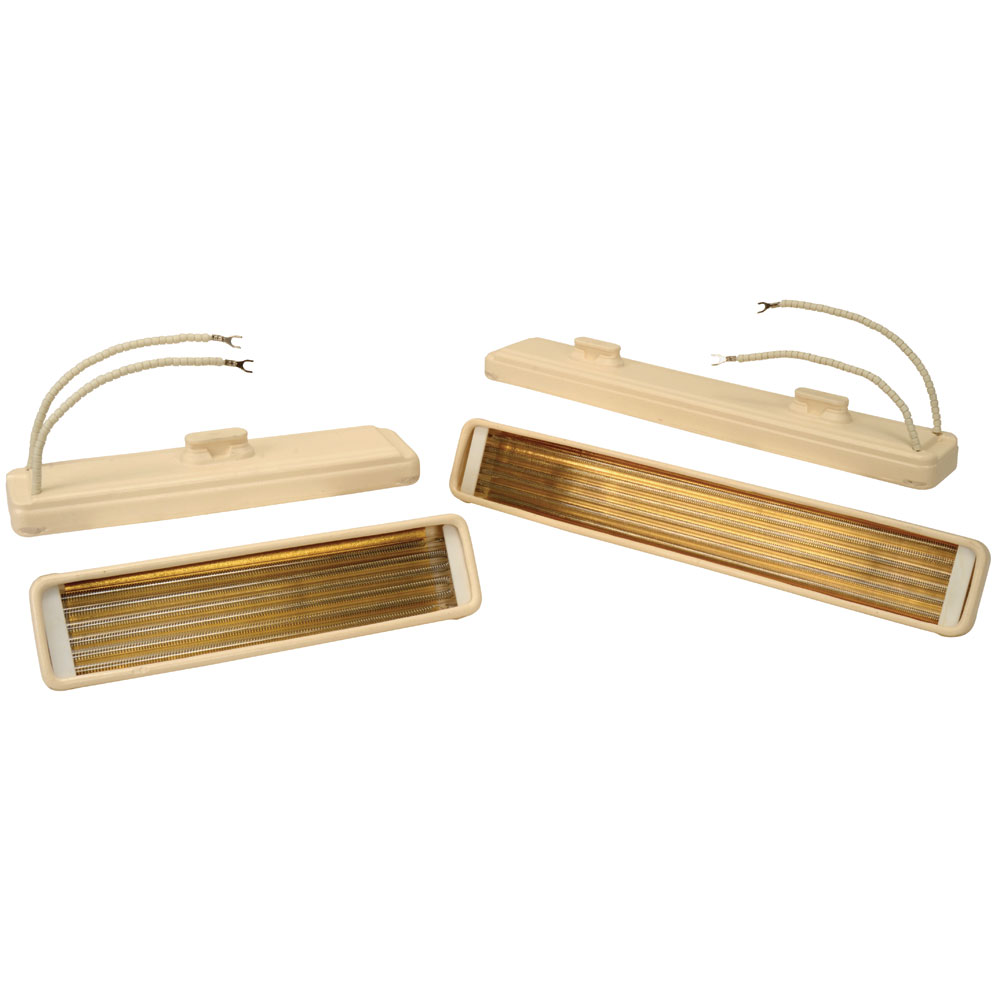

Series VSR

Wavelength: Capable of delivering medium and long wavelengths
Filament Temperature: 950K Wire Temperature
Lamp: Fe-Cr-Al Resistance Wire in Air
Watts: 125 – 1500
Standard Lamp Voltages:120 to 480
