Tempco Tubular Radiant Heaters

The rugged anodized extruded aluminum housing encloses a polished aluminum reflector (replaceable) and an Incoloy® sheath tubular heaters (replaceable). It is designed with an element Support brackets (replaceable), sliding mounting bolts (replaceable), dual internal wireways for single end wiring and a Ground terminal lug. It has slots for heat shield on the side of the housing for between units and offers convenient field wiring.

Eagle Sensors & Controls, Division of Excel Automation LLC, is an authorized Tempco distributor. Contact us for sales & technical support for Tempco heaters, Tempco sensors, Tempco temperature controllers, Tempco process heating systems & all other Tempco products.

Element Configurations

/Tempco/Data-Assets/07-Infrared-Images/WebR141BW.jpg

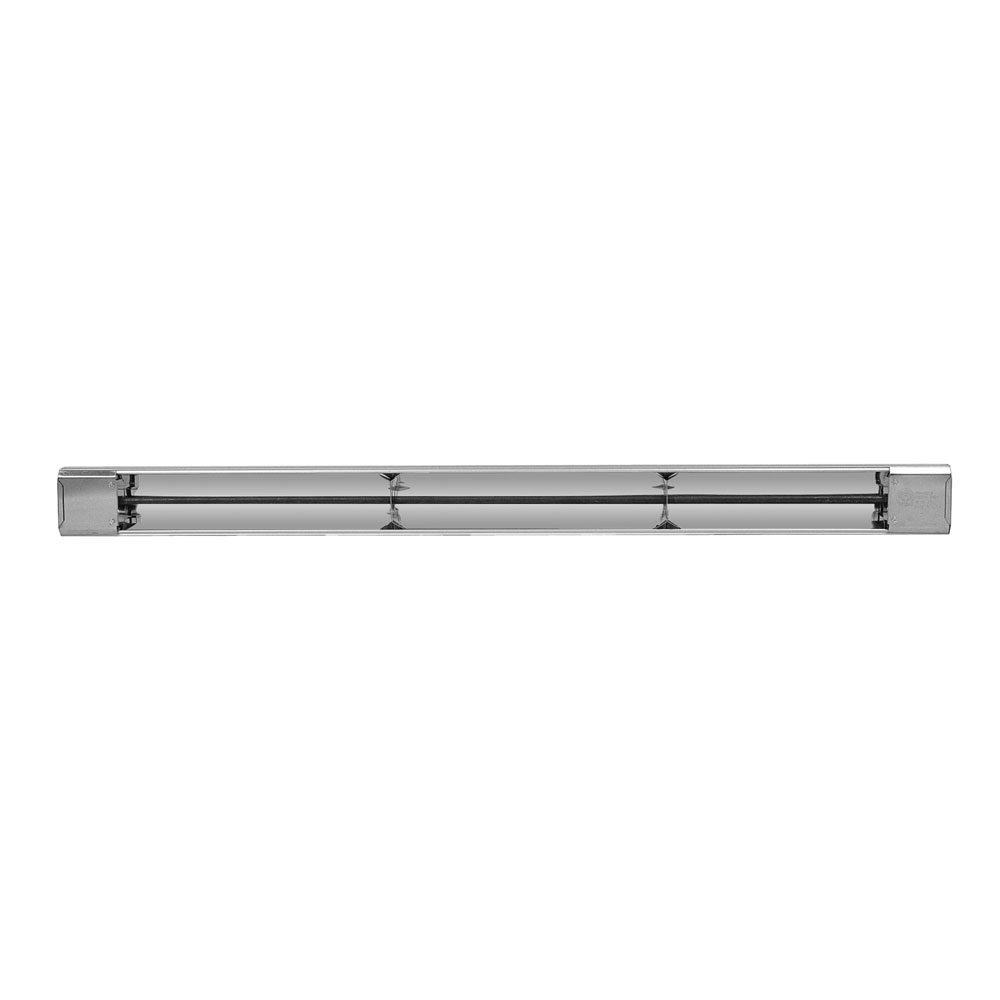

Series TRH1

Single Straight Element Double End Termination

/Tempco/Data-Assets/07-Infrared-Images/WebR142BW.jpg

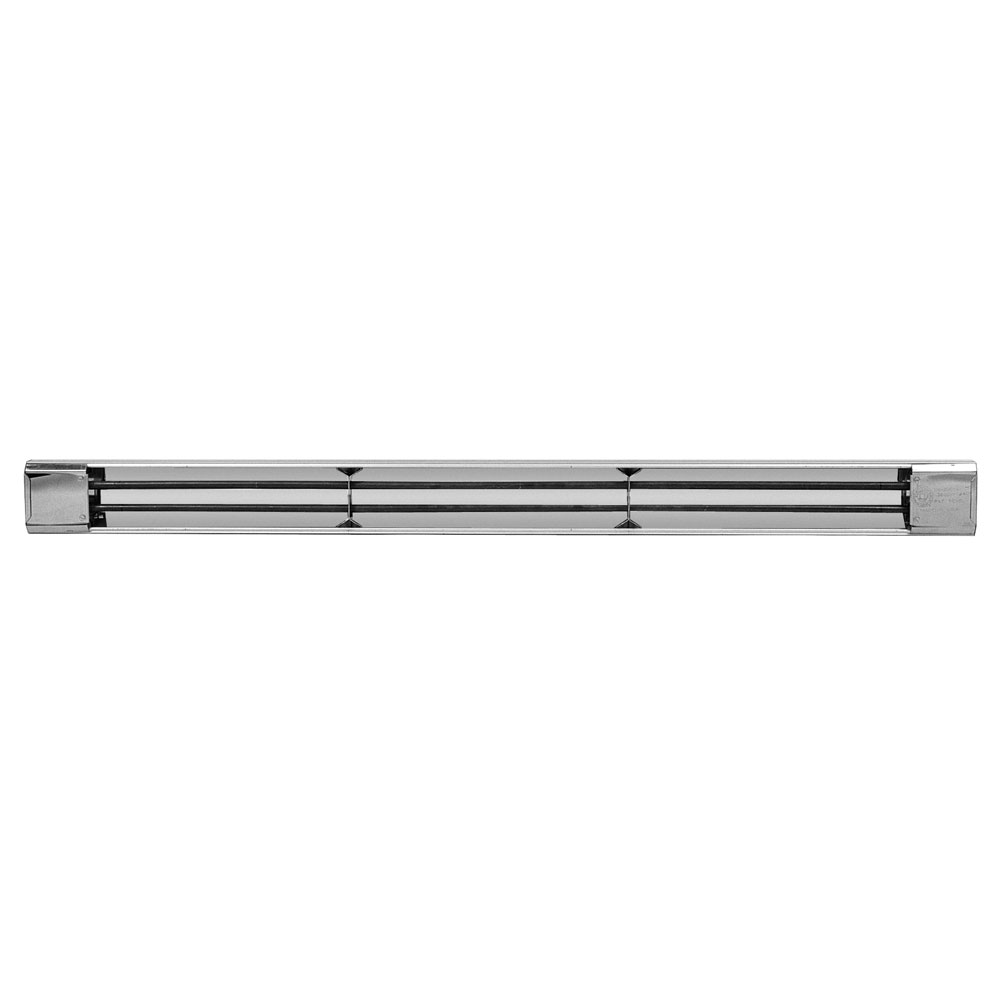

Series TRH2

Dual Straight Element Double End Termination

/Tempco/Data-Assets/07-Infrared-Images/WebR143BW.jpg

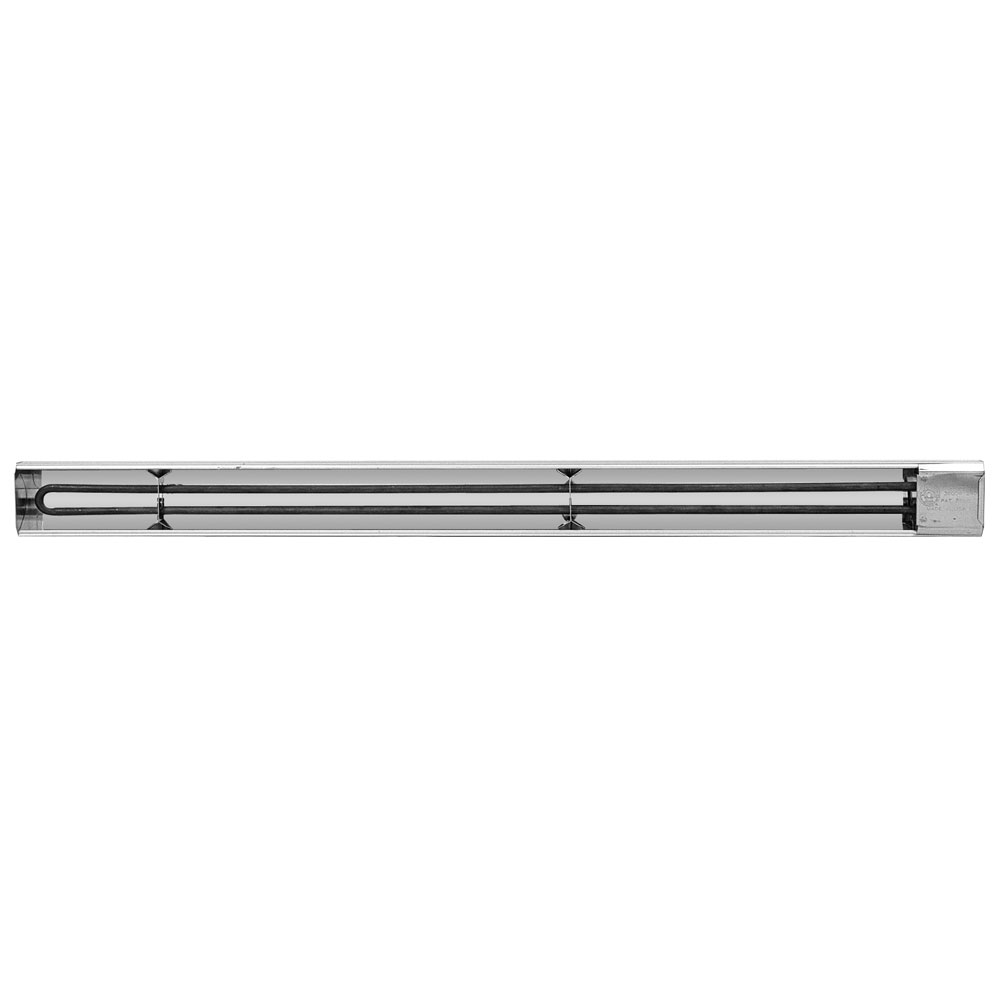

Series TRH3

Single Hairpin Element Bend Single End Termination

/Tempco/Data-Assets/07-Infrared-Images/WebR144BW1.jpg

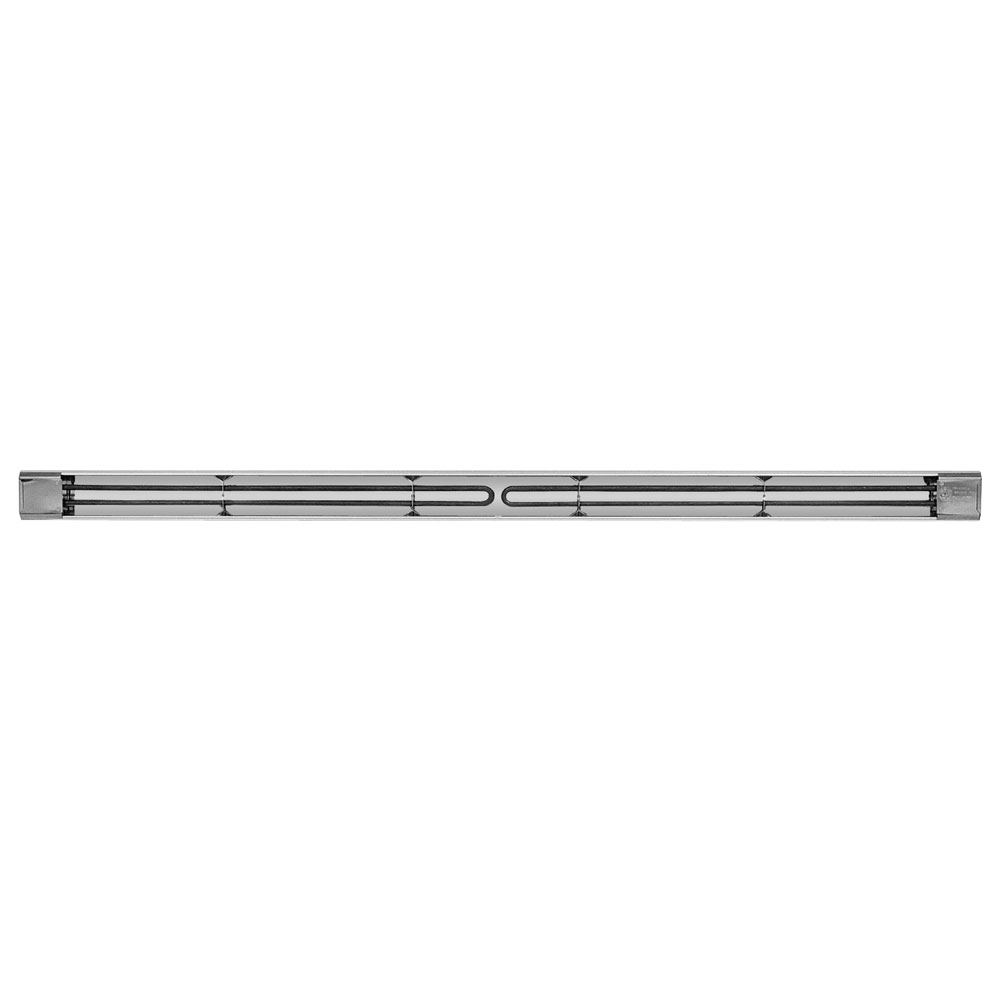

Series TRH4

ual Hairpin Element Bend Double End Termination

/Tempco/Data-Assets/07-Infrared-Images/WebR145BW.jpg

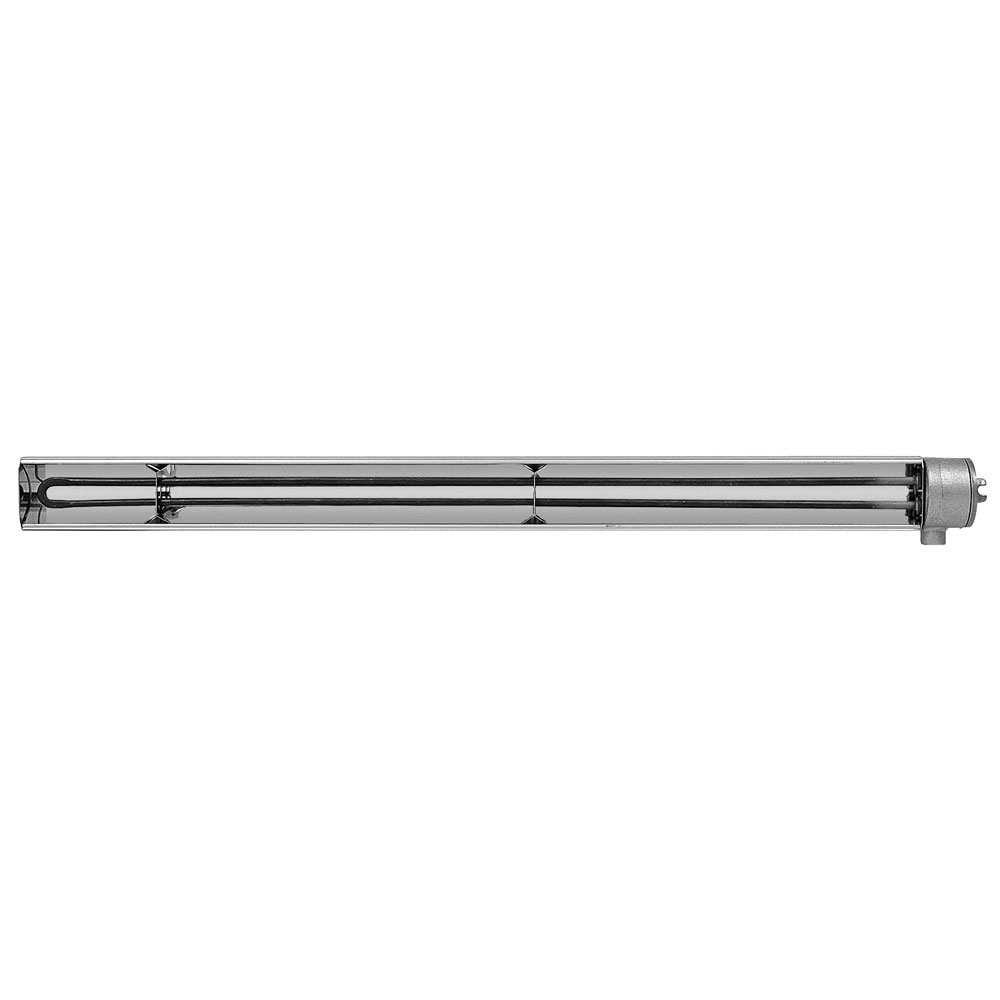

Series TRH5

Single Hairpin Element Liquid Tight Single End Termination

/Tempco/Data-Assets/07-Infrared-Images/WebR146BW.jpg

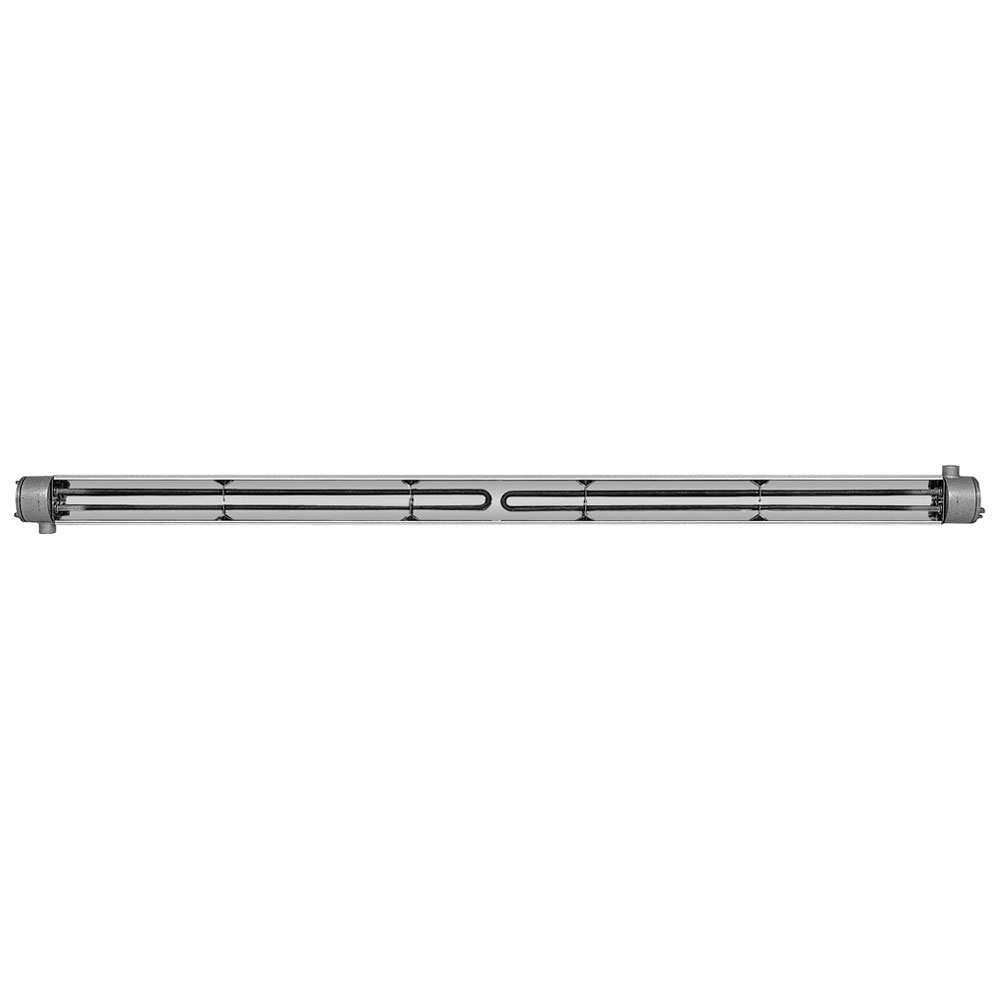

Series TRH6

Dual Hairpin Element Liquid Tight Double End Termination

Universal 2000 Heater Replacements

Tempco offers both straight and Hairpin Bend replacement heaters. See Preconfigured Part Numbers for details.
