Amerimation MT5C/8C Series
Eagle Sensors & Controls is an authorized Amerimation distributor. Contact us with application and sales support.
Key Features
- Optional LED bulbs available
- Selectable Steady or Flashing Modes
- Prism-cut lenses for even light distribution
- Various mounting options available
- Wire leads or Terminal connection
- Add-on Buzzer (80 dB) kit available
① Lens diameter
② Number of stack
| 1 |
1 Light |
| 2 |
2 Lights |
| 3 |
3 Lights |
| 4 |
4 Lights |
| 5 |
5 Lights |
|
③ Power supply
| A |
24VAC/DC |
| B |
110~120VAC |
| C |
220~240VAC |
|
④ Connection
| L |
Lead wires |
| T |
Terminal connection |
|
⑤ Lens colors
| R |
Red |
| Y |
Yellow |
| G |
Green |
| B |
Blue |
| C |
Clear |
|
Specifications
| Operation/Function |
Steady and flash with buzzer |
| Maximum tier |
5 stacks |
| Power Supply |
24VAC/DC |
100~120VAC |
220~240VAC |
| Current Consumption |
1 light |
0.4A |
0.09A |
0.04A |
| 2 lights |
0.8A |
0.18A |
0.08A |
| 3 lights |
1.3A |
0.27A |
0.12A |
| 4 lights |
1.7A |
0.36A |
0.16A |
| 5 lights |
2.0A |
0.45A |
0.20A |
| Buzzer |
30mA |
| Sound level |
80 ± 5dB at 1 meter |
| Ambient Temperature |
-15 ~ 40 ̊C |
| Storage Temperature |
-20 ~ 70 ̊C |
| Lens Material |
PC Plastic |
| Ambient humidity |
45 ~ 85% RH |
| Degree of Protection |
IP54 (IP40 with buzzer) |
| Recommended wire size |
UL1007/22AWG |
| Certificate/Compliance |
UL, CE, RoHS |
Replacements
| Part number |
Power supply / Specifications |

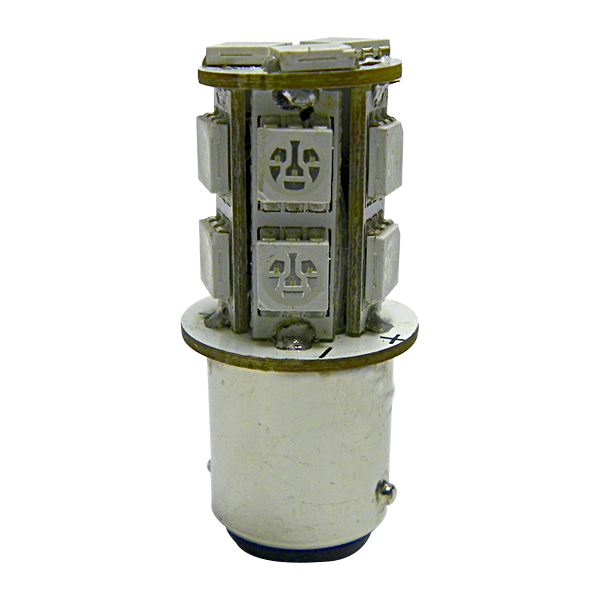

| LED |
|
LED-T15-D-24-C |
24VDC |
| Bayonet, Double contact |
| LED-T15-D-110-C |
110~120VAC |
| Bayonet, Double contact |
| Bulb |
|
MAB-T15-D-024-10 |
24VAC/DC, 10W |
| Bayonet, Double contact |
| MAB-T15-D-120-10 |
110~120VAC, 10W |
| Bayonet, Double contact |
| MAB-T15-D-240-10 |
220~240VAC, 10W |
| Bayonet, Double contact |
| Lens |
– |
MAL-5[*] |
Ø56mm |
| MAL-8[*] |
Ø86mm |
|
[*] indicates color of LED or Lens: R, Y, G, B, or C
