MT4B/5B/8B Series

Eagle Sensors & Controls is an authorized Amerimation distributor. Contact us with application and sales support.

Key Features

  • Optional LED bulbs available
  • Steady Mode
  • Prism-cut lenses for even light distribution
  • Lead wire connection
  • Various mounting options availavle



  • Lead wire connection

① Lens size

4 Ø45mm
5 Ø56mm
6 Ø85mm

② Number of stack

1 1 Light
2 2 Lights
3 3 Lights
4 4 Lights
5 5 Lights

③ Power supply

A 24VAC/DC
B 110~120VAC
C 220~240VAC
D 12VAC/DC

④ Lens colors

R Red
Y Yellow
G Green
B Blue
C Clear



Specifications

Operation/Function Steady
Maximum tier 5 stacks
Power Supply 12VAC/DC 24VAC/DC 100~120VAC 220~240VAC
MT4B MT5B/8B MT4B MT5B/8B MT4B MT5B/8B MT4B MT5B/8B
Current Consumption 1 light 0.4A 0.8A 0.2A 0.4A 0.04A 0.08A 0.02A 0.04A
2 lights 0.8A 0.7A 0.4A 0.8A 0.09A 0.16A 0.04A 0.08A
3 lights 1.2A 2.5A 0.6A 1.2A 0.13A 0.24A 0.06A 0.12A
4 lights 1.6A 3.3A 0.8A 1.6A 0.16A 0.32A 0.08A 0.16A
5 lights 2.0A 4.2A 1.0A 2.0A 0.20A 0.40A 0.10A 0.20A
Vibration 3mm at 10~55Hz
Certificate/Compliance MT4B: UL, CE, RoHS / MT5B/8B: RoHS
Ambient Temperature -15 ~ 40 ̊C
Storage Temperature -20 ~ 70 ̊C
Lens Material PC Plastic
Ambient humidity 45 ~ 85% RH
Degree of Protection IP54
Recommended wire size UL1007/22AWG



Operation/Function Steady
Maximum tier 5 stacks
Power Supply 12VAC/DC 24VAC/DC 100~120VAC 220~240VAC
MT4B MT5B/8B MT4B MT5B/8B MT4B MT5B/8B MT4B MT5B/8B
Current Consumption 1 light 0.4A 0.8A 0.2A 0.4A 0.04A 0.08A 0.02A 0.04A
2 lights 0.8A 0.7A 0.4A 0.8A 0.09A 0.16A 0.04A 0.08A
3 lights 1.2A 2.5A 0.6A 1.2A 0.13A 0.24A 0.06A 0.12A
4 lights 1.6A 3.3A 0.8A 1.6A 0.16A 0.32A 0.08A 0.16A
5 lights 2.0A 4.2A 1.0A 2.0A 0.20A 0.40A 0.10A 0.20A
Vibration 3mm at 10~55Hz
Certificate/Compliance MT4B: UL, CE, RoHS / MT5B/8B: RoHS
Ambient Temperature -15 ~ 40 ̊C
Storage Temperature -20 ~ 70 ̊C
Lens Material PC Plastic
Ambient humidity 45 ~ 85% RH
Degree of Protection IP54
Recommended wire size UL1007/22AWG

Replacements

Part number Power supply / Specifications

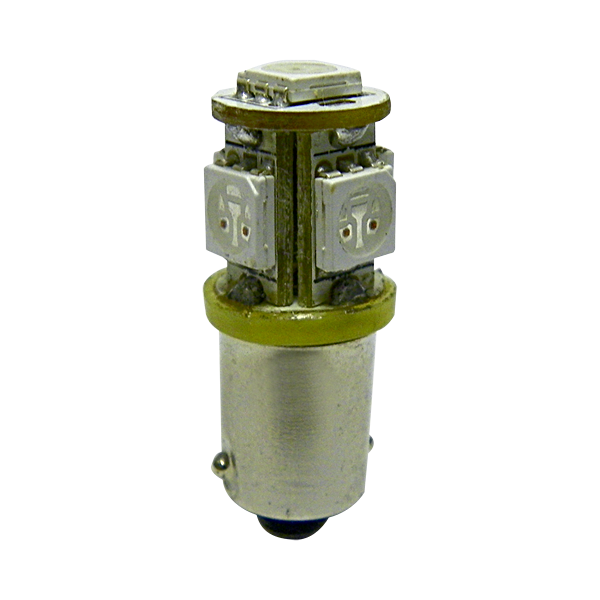

MT4B LED   LED-T09-S-12-C 12V DC
Bayonet, Single contact
LED-T09-S-24-C 24V DC
Bayonet, Single contact
Bulb   MAB-T09-S-012-05 12VAC/DC, 5W
Bayonet, Single contact
MAB-T09-S-024-05 24VAC/DC, 5W
Bayonet, Single contact
MAB-T09-S-130-05 110~120VAC, 5W
Bayonet, Single contact
MAB-T09-S-240-05 220~240VAC, 5W
Bayonet, Single contact
Lens – MAL-4[*] Ø45mm
MT5B/8B LED   LED-T15-D-12-C 12VDC
Bayonet, Double contact
LED-T15-D-24-C 24VDC
Bayonet, Double contact
LED-T15-D-110-C 110~120VAC
Bayonet, Double contact
Bulb   MAB-T15-D-012-10 12VAC/DC, 10W
Bayonet, Double contact
MAB-T15-D-024-10 24VAC/DC, 10W
Bayonet, Double contact
MAB-T15-D-120-10 110~120VAC, 10W
Bayonet, Double contact
MAB-T15-D-240-10 220~240VAC, 10W
Bayonet, Double contact
Lens – MAL-5[*] Ø56mm
MAL-8[*] Ø86mm

[*] indicates color of LED or Lens: R, Y, G, B, or C
